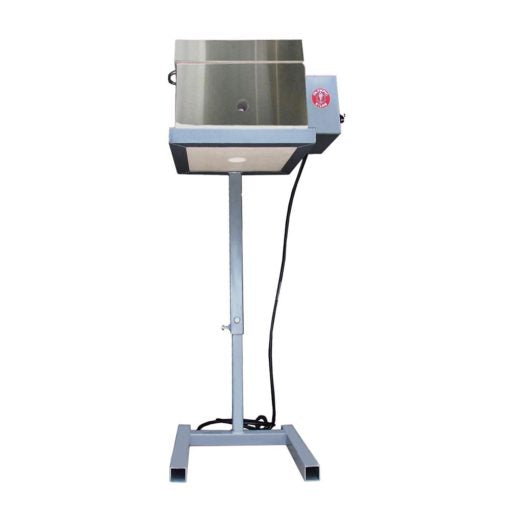

Olympic HB86P Vitrigraph Glass Pulling Kiln – 120V Electric Vitrigraph Kiln

Original price $0.00 - Original price $0.00
Original price $0.00
$1,376.00
$1,376.00 - $1,376.00
Current price $1,376.00

Free
Shipping

Free Shipping & No Sales Tax

Price
Match

We will NOT be undersold. See a lower price? We'll beat it!

0% APR
Financing

Get your kiln with flexible financing options

SSL
Secure

256-bit encryption keeps your payment and personal data safe

Have a question? Talk to one of our kiln experts today!

Call or Text a Pro Kiln Supply Team Member: (801) 839-5882

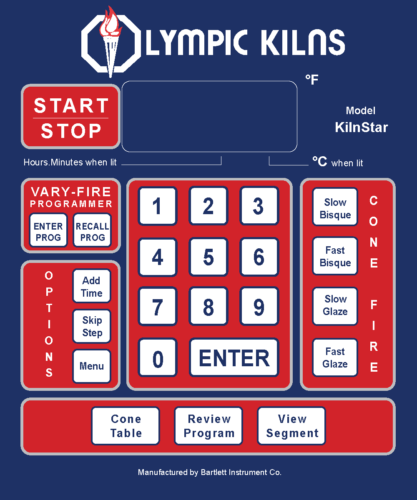

Model – HB86E Vitrigraph 120 volt – HotBox 86E equipped KilnStar controller

Inside dimensions of the kiln: 8″ x 8″ wide x 6.5″ deep, fires to cone 10/2350°F; with adjustable stand ranging in height 23″ to 33″ tall.

The HB86E Vitrigraph comes with 2 floors, 1 fiber, and 1 cordierite—both floors have holes for stringers to flow through. A solid brick floor for firing the kiln during regular use for slumping, fusing, jewelry making, testing, etc., can be purchased separately.

This glass-firing model comes equipped with a pilot light, a stainless steel jacket, an adjustable stand from 23″ to 33″ tall, a KilnStar digital controller, two peephole plugs, and an instruction manual.

One-year warranty for cone 10 models.

At the time of purchase, an upgrade to the KilnStar digital controller or the Genesis touchscreen controller.

Furniture Kits for 120-volt models provide 2-3 layers of shelving for stacking ware, assorted small square posts, and ceramic paper.  Choose the standard furniture kit or build your own with shelves and posts in the quantities required.

Specific Kiln Information

Model HB86E Wiring
Equipped with Lid Lift Assist N/A 120 Volts
Inside Chamber Dimensions w x d x h (inches) 8 x 8 x 6.5 15 Amps
Cubic Feet  .24 1800 Watts
Outside Dimensions with Stand or Frame w x d x h (inches)  17.5 x 13 x 16.5 20 Amp Breaker Required
Brick Thickness 2.5” Plug Configuration: NEMA 5-15
Maximum Temperature Cone 10 – 2350°F/1288°C Copper Wire Size: #12, #10 if the circuit is longer than 40 ft
Kiln Stand Base which holds Kiln 14″ x 14″ wide, Stand Base14.5″ wide x 14″ deep x 23″-33″ high
Est Ship Wt Kiln 55 lbs, Stand 30 lbs
