Model – 189 Slider 240 or 208 volt
Inside dimensions: 18″ x 18″ wide x 9″ deep, fires to 1700° F
The 189 Slider square clamshell designed kiln with inside dimensions measuring 18″ x 18″ wide x 9″ deep has a sliding floor for ease in loading and glass manipulation. 189 Slider is bolted to an 18″ heavy angle iron stand and comes completely assembled when shipped. The sleek wooden handle keeps things cool as you slide the kiln floor out to a fully extended 44″ front-to-back. The 189 Slider lid brace arm is built into the side of the kiln and locks in place when the firing chamber is opened. The model has an element in the lid of the kiln to provide radiant heat needed when the fusing temperature is reached and elements in the kiln walls for conductive heat. Elements in the firing chamber are used to evenly heat the glass piece and the lid element is used when the fusing temperature is reached. Models have a maximum temperature range of 1700°F to protect the optional quartz glass viewing window but can be reprogrammed to fire to higher temperatures.

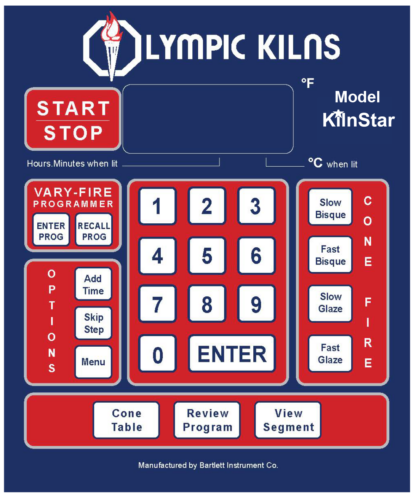

The 189 Slider comes equipped with a pilot light, a tall 18” heavy-angle iron stand, a stainless steel jacket, and the Bartlett KilnStar digital controller. Two-year Limited Kiln Warranty.

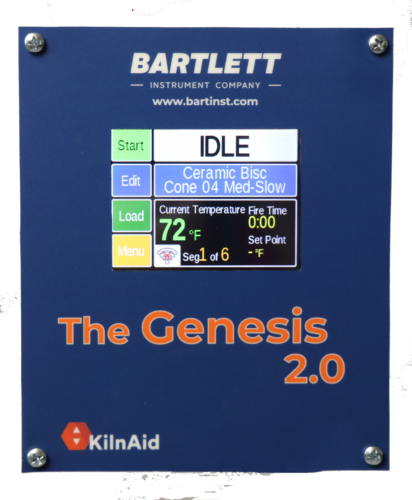

Other options include upgrading to the GENESIS electronic controller with touch screen technology, lid lift assist for models 18” wide or smaller, Type S thermocouple, flash arm, quartz glass viewing windows, lid elements in quartz rods, venting, and more!
Furniture Kits for 240-208-volt Glass Fusing kilns provide two layers of shelving for stacking ware, assorted small square posts, 1” x 1”, for models 18” wide or smaller and large square posts, 1 ½” x 1 ½”, for kilns 20” wide or larger, and ceramic paper. Choose the standard furniture kit for the selected model or build your own with shelves and posts in the quantities required.
Specific Kiln Information
| Model | 189 Slider | Wiring
Specifications |
1 Phase | |
|---|---|---|---|---|
| Equipped with Lid Lift Assist | Optional | Volts | 208 | 240 |
| Inside Chamber Dimensions w x d x h (inches) | 18 x 18 x 9 | Amps | 20 | 18 |
| Cubic Feet | 1.69 | Watts | 4,320 | |
| Outside Dimensions with Stand or Frame w x d x h (inches) | 35 x 30-44 x 31 | Breaker Required | 30 Amp | |
| Brick Thickness | 2.5” | Plug Configuration | NEMA 6-30 | |
| Maximum Temperature | 1700°F/927°C | Copper Wire Size | #10, #8 if the circuit is longer than 40 ft | |
| Est Ship Wt | 190 lbs | |||
