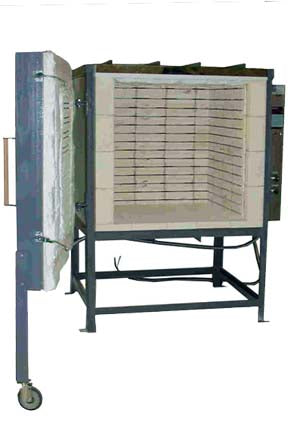

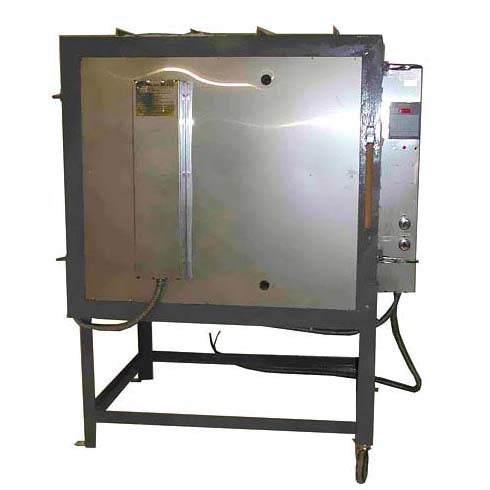

Model – FL27E 240 or 208 volt – Front loading production volume 27 cubic feet electric kiln
Inside Dimensions: 36″ wide x 36″ deep x 36″ high, fires to cone 10/2350°F

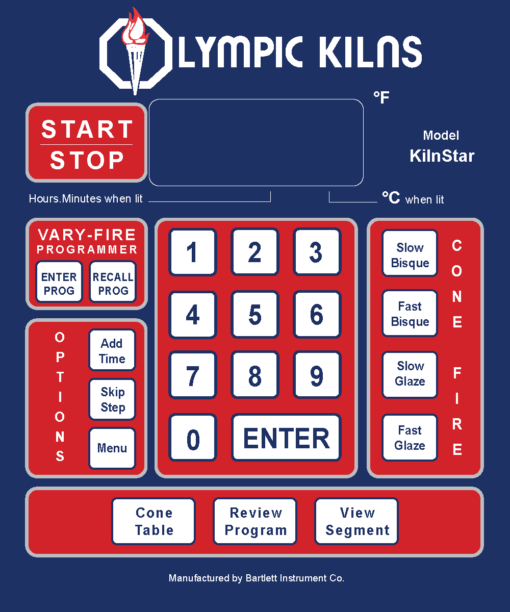

Front-loading large capacity models come equipped with a pilot light, welded heavy angle frame, stainless steel jacket, and 12 key digital Bartlett KilnStar controller for more ramp-hold user programs and multiple features including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and cone table for easy lookup of temperature and cone number equivalents. The FL27E is equipped with its own breaker box for easy access, safety, and lockout.
Additional options include upgrading to the Genesis touchscreen controller, 480-volt, Type S thermocouple, castors, vent, car loading, and much more!
Furniture Kits for Large Capacity Kilns provide 4 layers of shelving, assorted posts, and a 5-pound bag of kiln wash. Choose the standard furniture kit or build your own with shelves and posts in the quantities required.
Specific Kiln Information
| Model | FL27E | FL27E Car Kiln | Wiring Specifications | 1 Phase | 3 Phase | ||
|---|---|---|---|---|---|---|---|
| Inside Chamber Dimensions w x d x h (inches) | 36 x 36 x 36 | 36 x 36 x 36 | Volts | 208 | 240 | 208 | 240 |
| Cubic Feet | 27 | Amps | 104 | 90 | 69 | 60 | |
| Outside Dimensions with Stand or Frame w x d x h (inches) | 60 x 59 x 65 | 66 x 71 x 63 | Watts | 21,600 | |||
| Brick Thickness | 4.5” +1″ Fiber | Breaker Required | 120 Amp | 120 Amp | 80 Amp | 80 Amp | |
| Maximum Temperature | Cone 10 – 2350°F/1288°C | Plug Configuration | Direct Wired | ||||
| Est. Shipping Wt. | 1,665 lbs. | 2,255 lbs. | Copper Wire Size | #4, #2 if the circuit is longer than 40 ft | |||
