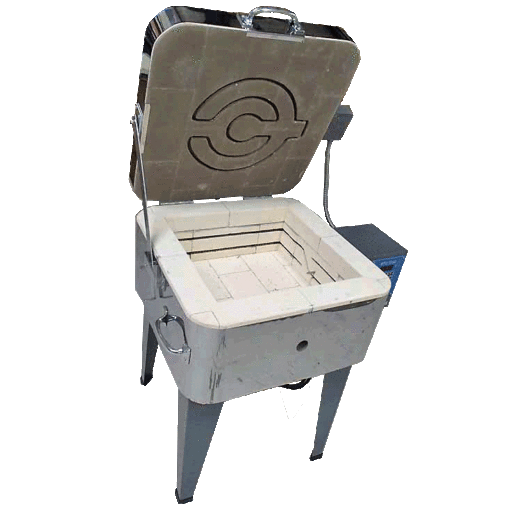

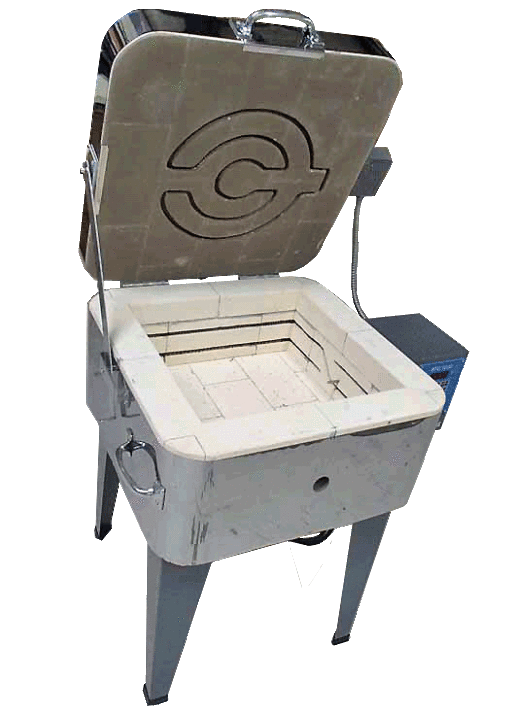

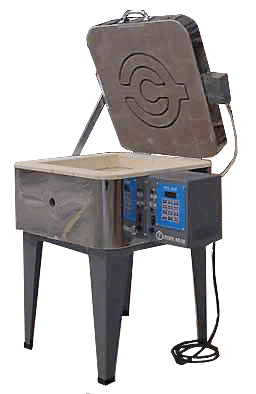

Model – Quatro 16 – 120 volt
Inside dimensions: 16.5″ x 16.5″ wide x 6 ” deep, fires to 1700° F

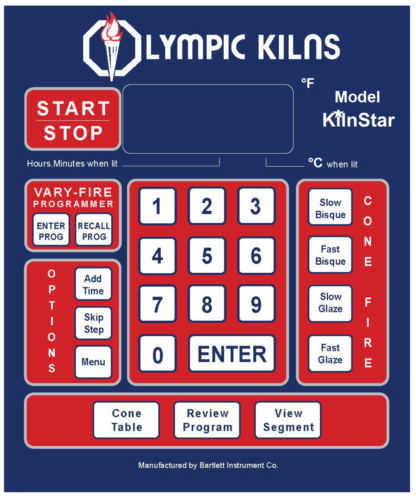

The Quatro 16 provides a square glass fusing kiln for individuals who need a kiln larger than 14.5″ x 14.5″ wide (Square 146GFE) but not as large as 18″ x 18″ wide (Square 186GFE). Glass firing kilns are used for fusing and forming glass shapes, precious metal clay, and heat-treating. 120-volt glass fusing and precious metal clay models are equipped with a lid element for the fusing segment of the glass firing and a body element for the ramping up, down, and annealing segments of the firing. A selector switch is on the electrical box to designate either the lid or body element to heat during the firing. Only one of the elements can be used at a time because of the limited power of 120 volts. If the selector switch remains in the neutral position, neither element will heat. Models come equipped with a pilot light, an 18” tall metal stand, a stainless steel jacket, and a Bartlett Instruments KilnStar digital controller.
Two-Year Limited Kiln Warranty.

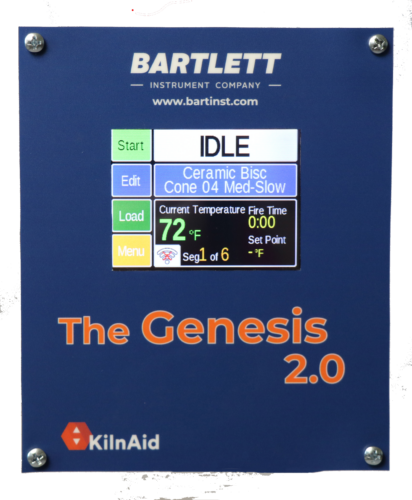

Upgrade to the Genesis touchscreen controller for more ramp-hold user programs and multiple features including delay start, preheat, skip step, and many more for precise firings every time. Messages and information are available for reviewing a firing profile before or during the firing, and for viewing the current segment the firing is in. Other options include the lid lift assist, which makes it easy to open and close heavy kiln lids, bead door, quartz glass viewing window, Type S thermocouple, vent, and more!
Furniture Kits for 120-volt glass fusing and PMC kilns include 2 layers of shelving for stacking ware, assorted square posts, and ceramic paper. Choose the standard furniture kit or build your own with shelves and posts in the quantities required.
Specific Kiln Information
| Model | Quatro 16 | Wiring Specifications |
|---|---|---|
| Equipped with Lid Lift Assist | Optional | 120 Volts |
| Inside Chamber Dimensions w x d x h (inches) | 16.5 x 16.5 x 6 | 16 Amps |
| Cubic Feet | .95 | 1920 Watts |
| Outside Dimensions with Stand or Frame w x d x h (inches) | 27 x 24 x 30 | 20 Amp Breaker Required |
| Brick Thickness | 3″ | Plug Configuration: NEMA 5-20 |
| Maximum Temperature | 1700°F/927°C | Copper Wire Size: #12, #10 if the circuit is longer than 40 ft |
| Est Ship Wt | 190 lbs | |
