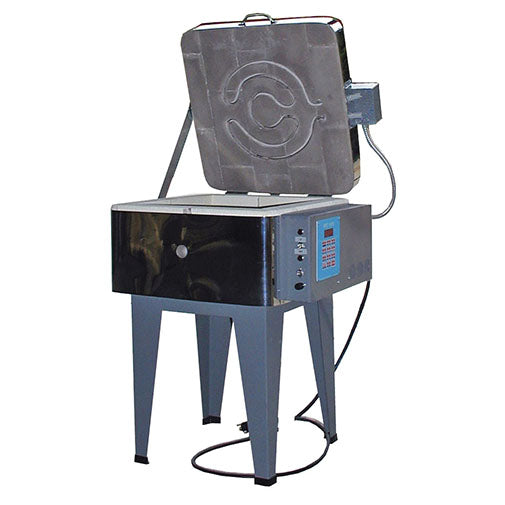

The Alpha, The Original 14″ Square 120-volt Glass Fusing Kiln!
Model – Square 146GFE – 120 volt
Inside dimensions: 14.5″ x 14.5″ wide x 6″ deep, fires to 1700°F

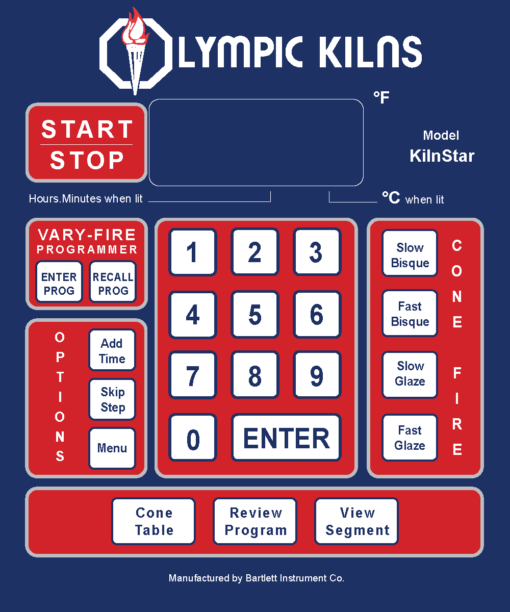

The square 14″ glass kiln is built with ample space for large 10″ pieces. Glass firing kilns are used for fusing and forming glass shapes through slumping, raking, and combing; and can be used for firing precious metal clay jewelry and other low-fire heat-treating. The Square 146GFE is equipped with a lid element for the fusing segment of the glass firing and a body element for the ramping up, down, and annealing segments of the firing. A selector switch is on the electrical box to designate either the lid or body element to heat during the firing. One of the elements is used at a time because of the limited power of 120 volts. If the selector switch remains in the neutral position, neither element will heat. Models come equipped with a pilot light, an 18” tall metal stand, a stainless steel jacket, and a Bartlett Instruments KilnStar digital controller.

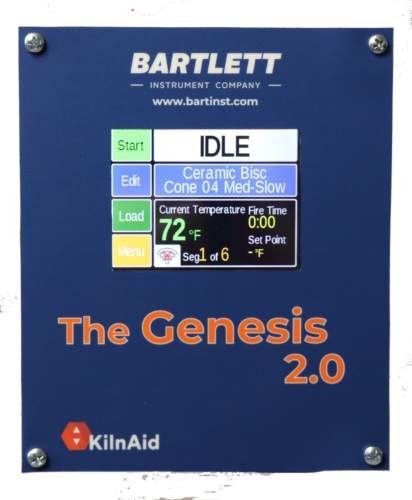

Upgrade to the Genesis touchscreen controller more ramp-hold user programs and multiple features including delay start, preheat, skip step, and many more for precise firings every time. Messages and information are available for reviewing a firing profile before or during the firing, and viewing the current segment the firing is in. Other options include the lid lift assist, which makes it easy to open and close heavy kiln lids, bead door, quartz glass viewing window, Type S thermocouple, vent, and more!
Furniture Kits for 120-volt glass fusing and PMC kilns include two layers of shelving for stacking ware, assorted square posts, and ceramic paper. Choose the standard furniture kit or build your own with shelves and posts in the quantities required.
Specific Kiln Information
| Model | Square 146GFE | Wiring Specifications |
|---|---|---|
| Equipped with Lid Lift Assist | Optional | 120 Volts |
| Inside Chamber Dimensions w x d x h (inches) | 14.5 x 14.5 x 6 | 16 Amps |
| Cubic Feet | .73 | 1920 Watts |
| Outside Dimensions with Stand or Frame w x d x h (inches) | 24 x 24 x 30 | 20 Amp Breaker Required |
| Brick Thickness | 2.5″ | Plug Configuration: NEMA 5-20 |
| Maximum Temperature | 1700°F/927°C | Copper Wire Size: #12, #10 if the circuit is longer than 40 ft |
| Est Ship Wt. | Ships in two boxes – 85/31 lbs. | |
