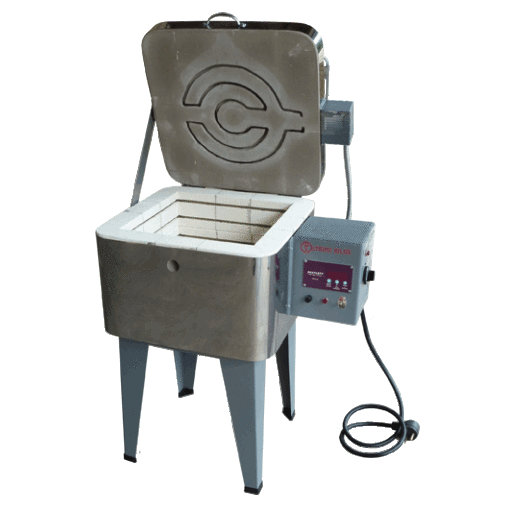

Model – SQUARE 149GFE 240 or 208 volt
Inside dimensions: 14 ½” x 14 ½” wide x 9″ deep, fires to 1700°F
Glass firing kilns are used for fusing, forming glass shapes, and heat-treating. 240-208-volt glass fusing models are equipped with a lid element for the fusing segment of the glass firing and body elements for the ramping up-down and annealing segments of the firing. An infinite switch controls the intensity of the heat coming from the lid element. If the switch remains in the OFF position, only the body elements will heat the kiln. If the infinite switch is turned to the High position, all elements, both body and lid, heat at the same intensity. The kiln operator may choose to lessen the intensity of the lid element by turning the switch down. Models come equipped with a pilot light, an 18” tall metal stand or frame, a stainless-steel jacket, and a Bartlett Instruments KilnStar digital controller.
Top-loading glass fusing kilns come in square styles and have the option of top-loading, clamshell loading, or top and clamshell loading. Glass kiln models 20” wide or larger are equipped with a lid lift assist for easy opening and closing of the kiln lid; however, smaller width kilns have the option of adding a lid lift if needed. 240-208-volt glass fusing kilns come equipped with a pilot light, a tall 18” metal stand or tall 18″ frame, a stainless-steel jacket, and a Bartlett KilnStar digital controller. Included in the kiln package are peephole plugs, lid wedge, and instruction manuals.
Two-year Limited Kiln Warranty.

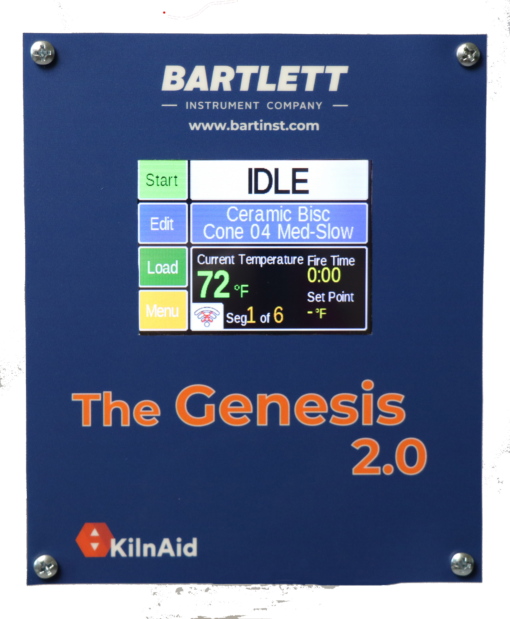

Additional options include upgrading to the Genesis touchscreen controller for more ramp-hold user programs and multiple features including delay start, preheat, skip-step, and many more for precise firings every time. Messages and information are available for reviewing a firing profile before or during the firing, and for viewing the current segment the firing is in. Other options include lid lift assist for models 18” wide or smaller, Type S thermocouple, flash arm, quartz glass viewing windows, lid elements in quartz rods, venting, and more!
Furniture Kits for 240-208-volt Glass Fusing kilns provide two layers of shelving for stacking ware, assorted small square posts, 1” x 1”, for models 18” wide or smaller and large square posts, 1 ½” x 1 ½”, for kilns 20” wide or larger, and ceramic paper. Choose the standard furniture kit for the selected model or build your own with shelves and posts in the quantities required.
Specific Kiln Information
| Model | SQ149GFE | Wiring Specifications | 1 Phase | |
|---|---|---|---|---|
| Equipped with Lid Lift Assist | Optional | Volts | 208 | 240 |
| Inside Chamber Dimensions w x d x h (inches) | 14.5 x 14.5 x 9 | Amps | 17 | 15 |
| Cubic Feet | 1.09 | Watts | 3,600 | |
| Outside Dimensions with Stand or Frame w x d x h (inches) | 28 x 22 x 32 | Breaker Required | 30 Amp | 20 Amp |
| Brick Thickness | 2.5” | Plug Configuration | NEMA 6-30 | |
| Maximum Temperature | 1700°F/927°C | Copper Wire Size | #12, #10 if the circuit is longer than 40 ft | |
| Est Ship Wt. | 150 lbs. | |||
