High-Capacity, Dual-Mode Studio Powerhouse

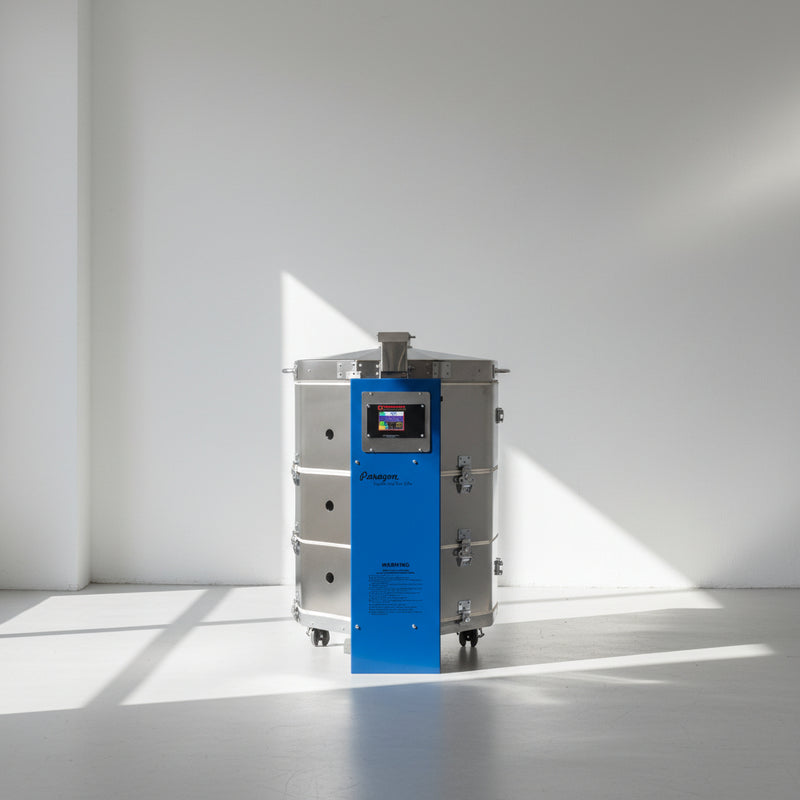

The Paragon CT102329 Janus Ceramic and Glass Kiln delivers high-capacity performance, dual-mode firing, and dependable cone-10 results in a powerful kiln designed for studios working in both ceramics and glass. With a 22.5" interior diameter and 29" depth (7.10 cu ft), it offers exceptional vertical capacity for tall sculptural work, large batch firings, and full multi-shelf loads. Built on Paragon's trusted Ceramic Top platform, this model combines proven durability with the expanded flexibility of Janus dual-mode firing — a true workhorse for demanding studio environments and classrooms.
The Janus dual-mode system uses dedicated top and sidewall elements, controlled by a simple toggle switch. Glass mode activates the top and mid-side elements for controlled radiant heat — ideal for fusing, slumping, and sagging larger glass projects — while pottery mode uses sidewall elements only for even heat distribution during bisque and glaze firings up to cone 10. This flexibility makes the CT102329 Janus an excellent choice for multi-disciplinary studios or high-volume environments looking to maximize output with a single kiln.
Included with every order
Sentinel SmartTouch controller, solid-state relays, instruction manual, and 2-year limited warranty. Also available in 240V 3-phase and 208V configurations — contact us for electrical details. Optional furniture kit, VentMaster kiln vent, and kiln stand available.
Key Features
- 22.5" x 29" 10-sided chamber (7.10 cu ft) — exceptional vertical capacity for tall work and large batch firings
- Janus dual-mode firing system — toggle between glass mode (top + mid-side elements) and pottery mode (sidewall elements)
- 3" firebrick insulation throughout with solid-state relays for quiet, efficient operation

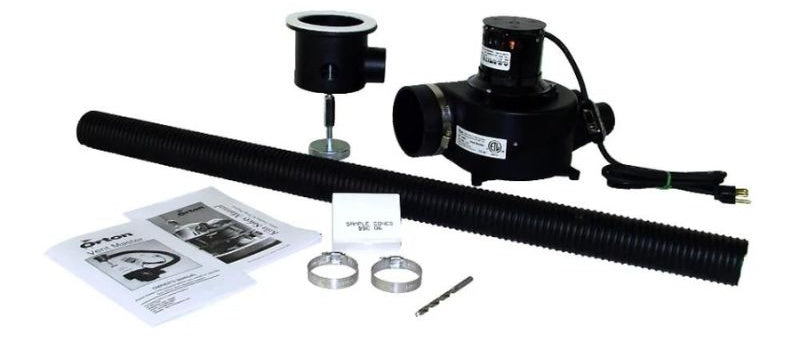

- Vent-ready pre-drilled base with AOP for seamless Orton VentMaster integration
- Sectional construction with twist-lock spring latches for easier setup, transport, and maintenance
- Patented LiteLid spring system for smooth, one-handed lid lifting
- Top row of grooveless blank bricks and reversible firebrick floor to reduce wear and extend kiln life
- Sentinel SmartTouch controller with cone-fire and ramp-hold programming, firing logs, and diagnostics
- Drop-down hinged switch box for convenient servicing access

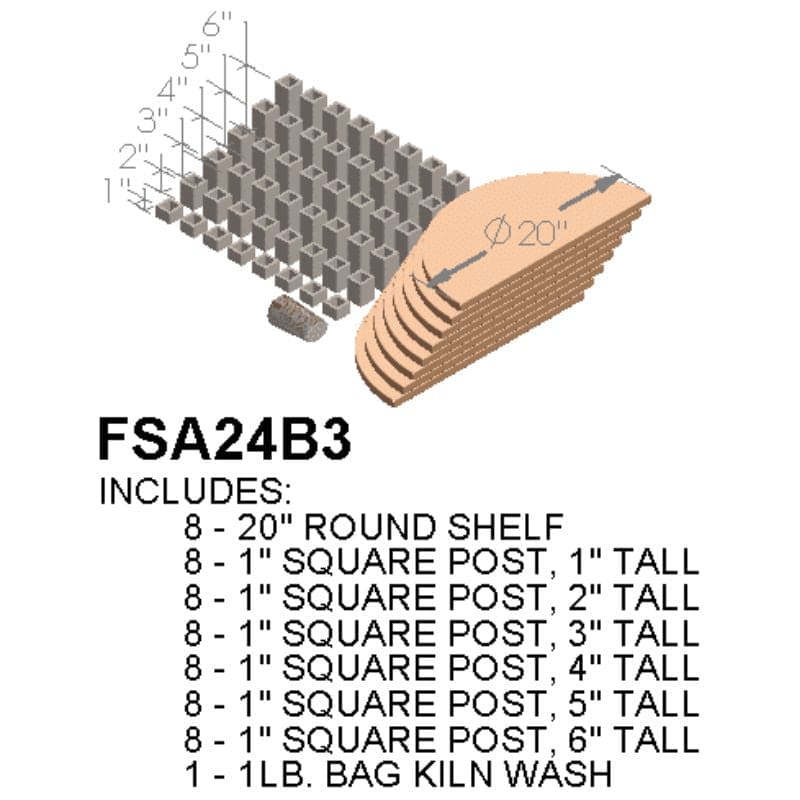

- Optional furniture kit — eight 20" round shelves, full set of 1"-square posts (1"–6" heights), 1 lb kiln wash

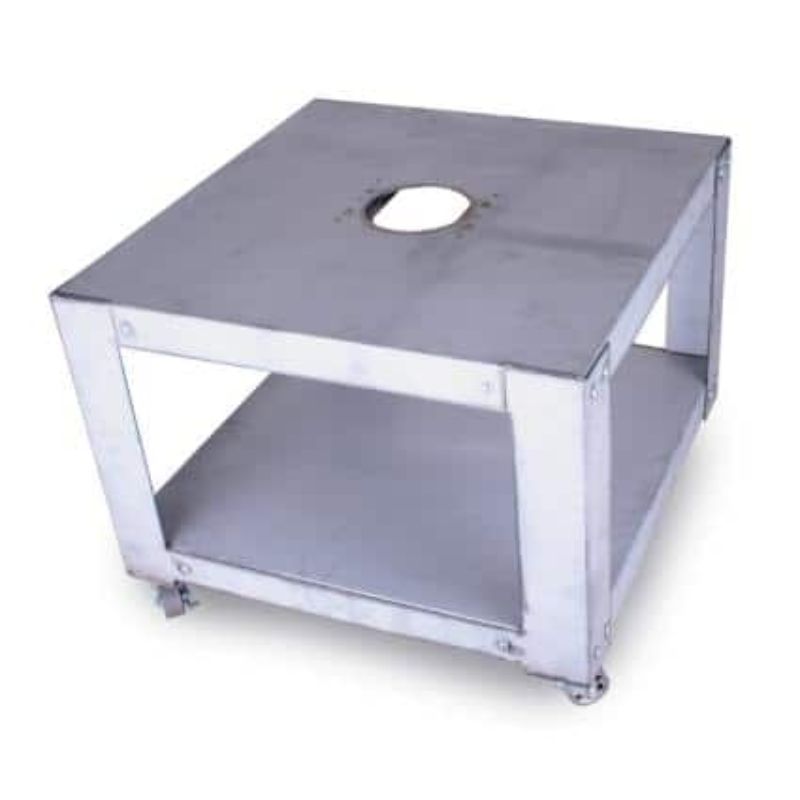

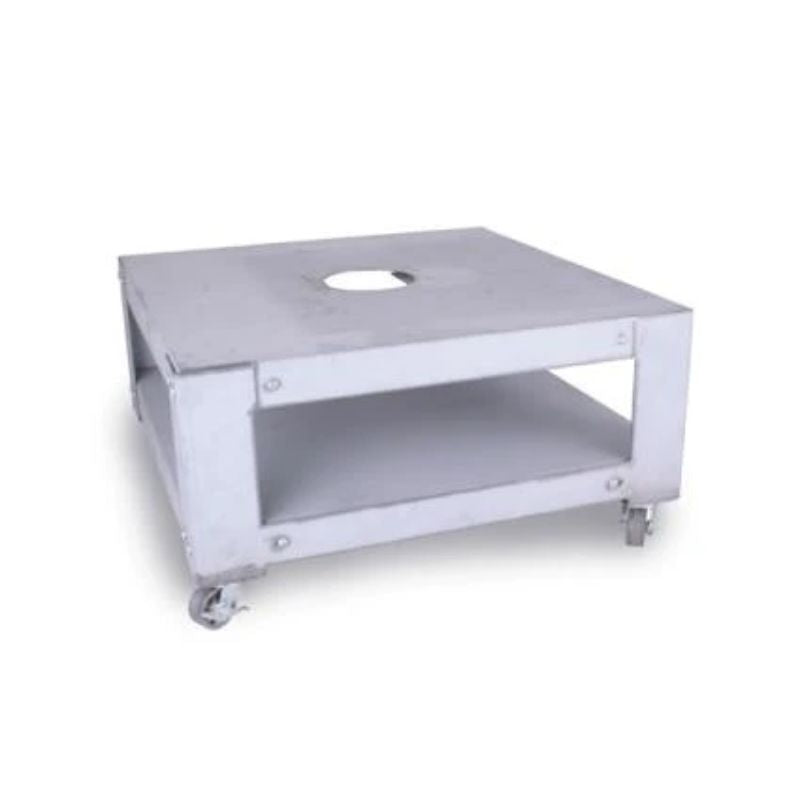

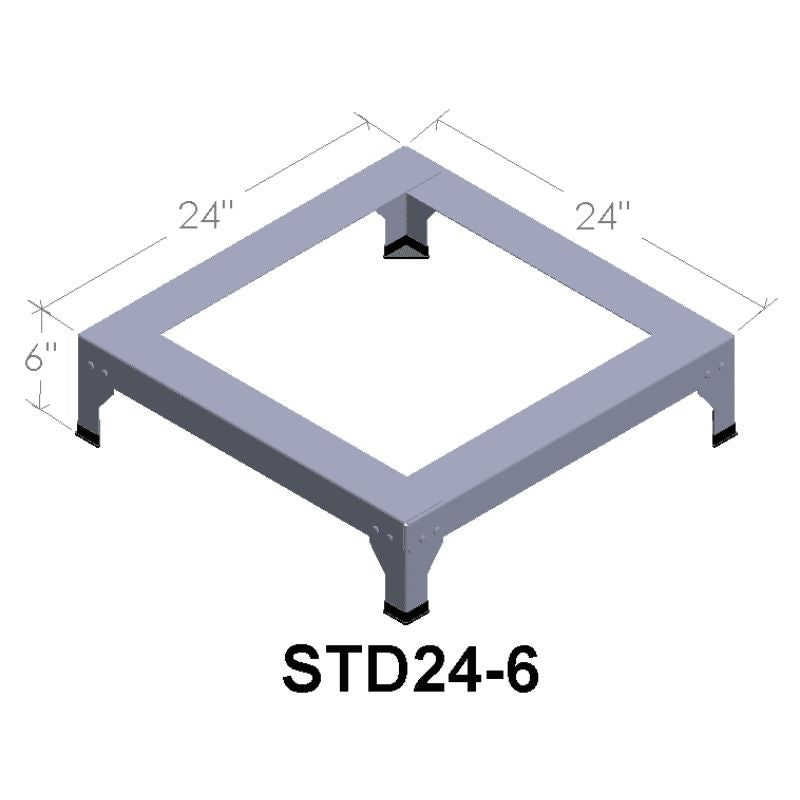

- Optional kiln stand — 6" standard stand or 12" deluxe rolling stand (recommended with VentMaster)
- Hand-built in Mesquite, Texas with decades of craftsmanship and innovation
Specifications
| Interior Dimensions | 22.5" W x 29" H (10-sided) |
| Cubic Feet | 7.10 |
| Overall Dimensions | 30.5" W x 43.8" D x 36" H |
| Max Temperature | 2,350°F (Cone 10) / 1,287°C |
| Voltage | 240V (single phase) — 3-phase and 208V also available |
| Amps | 48A |
| Watts | 11,500 |
| Plug Configuration | NEMA 6-50 |
| Breaker Size | 60A |
| Approx. Ship Weight | 390 lbs |
