Lift-Top Access, Balanced Heat

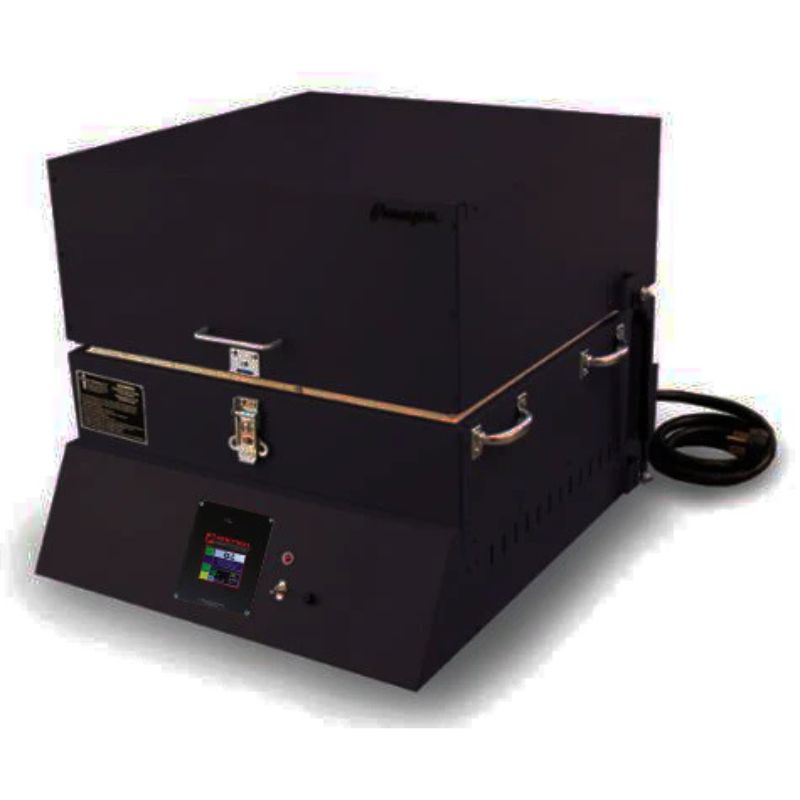

The Paragon Pearl 22 Glass Fusing Kiln is built for serious glass artists, educators, and studios that need greater firing capacity and advanced heat control. With a 22" x 22" x 13" firing chamber and Paragon's vertical lift-top design, the Pearl 22 delivers precise digital performance for fused glass, slumping, casting, bowls, and layered glasswork.
The smooth lift-top opening gives you open access from three sides, so projects can be arranged directly inside the chamber instead of carrying loaded shelves between worktables and the kiln — reducing the chance of disturbing delicate glass layouts. Combined top-mounted and upper sidewall heating elements promote balanced, even heat across larger projects.
Included with every order
SENTINEL Touch Xpress digital controller, instruction manual, and 2-year limited warranty. Optional Muffle Top, solid-state, and mercury displacement relay configurations available.
Key Features
-
22" x 22" x 13" chamber — generous shelf space and vertical clearance for deep molds, dimensional forms, and layered compositions
-
Vertical lift-top design — open access from three sides for easier loading and arranging
-
Top and upper sidewall heating elements in pinless grooves for balanced, even firing across larger projects
-
Built-in stand integrated into the kiln base — no separate support equipment needed
-
SENTINEL Touch Xpress digital controller with custom firing schedule storage for slumping, full fuse, tack fuse, and annealing
-
1/4" sheathed Type-K thermocouple and heavy-duty wiring with integrated base-mounted electrical components
-
Optional Muffle Top — ceramic fiber lid lining for more even heat reflection and improved thermal efficiency
-
Choice of relay configurations — standard mechanical, solid-state for quieter operation, or mercury displacement for industrial-grade smoothness
Specifications
| Interior Dimensions |
22" W x 22" D x 13" H |
| Cubic Feet |
3.64 |
| Overall Dimensions |
32" W x 37" D x 26" H |
| Max Temperature |
1,700°F / 927°C |
| Voltage |
240V (single phase) |
| Amps |
30A |
| Watts |
7,200 |
| Plug Configuration |
NEMA 6-30 |
| Breaker Size |
40A |
| Approx. Ship Weight |
320 lbs |
Not sure if this is the right kiln for you?
Give us a call. We'll talk through your space, power setup, and what you're firing to help you find the perfect fit.
📞 (801) 839-5882
Monday to Friday, 9AM to 5PM MST
Contact us for estimated lead time
