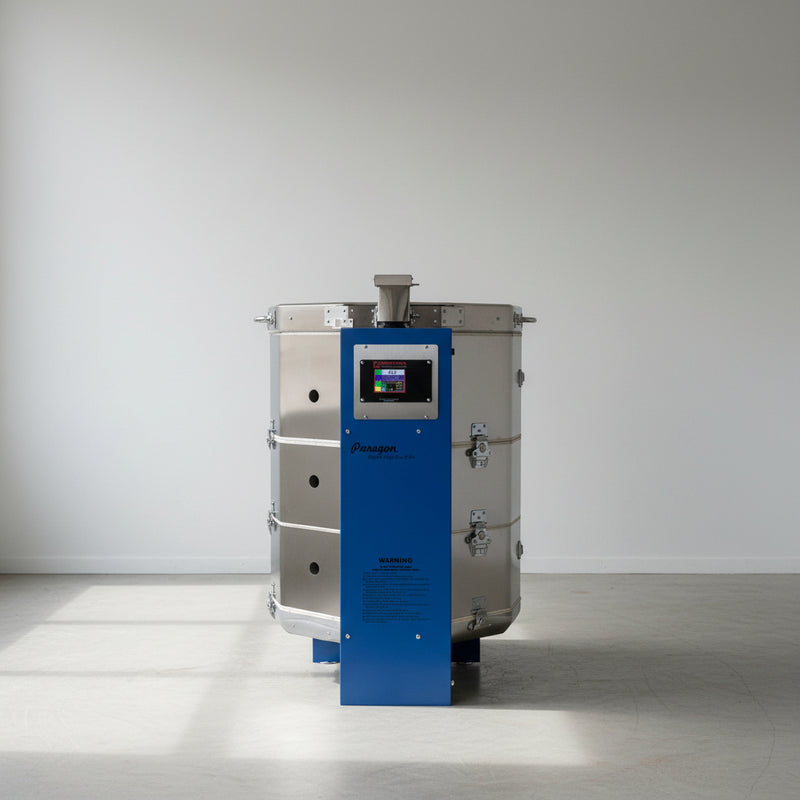

Paragon CT102329 Ceramic and Pottery Kiln
The Paragon CT102329 delivers high-volume capacity, exceptional durability, and dependable cone-10 performance in a tall 10-sided configuration built for production studios, schools, and ceramic artists who need deeper firing space. Its 22.5" interior diameter × 29" depth (7.10 cu ft) is ideal for tall sculptural work, multi-layer loads, and frequent batch firing — all with the even heat and reliability the CT Series is known for.
Three-inch firebrick insulation, solid-state relays, and a vent-ready AOP base provide the core infrastructure for serious production use. Recessed element grooves eliminate pins, sectional twist-lock latches make ring separation easy, and the drop-down hinged switch box gives front-access for maintenance. A reversible firebrick floor rounds out a kiln built to deliver consistent cone-10 results over years of heavy use.
Included with every order

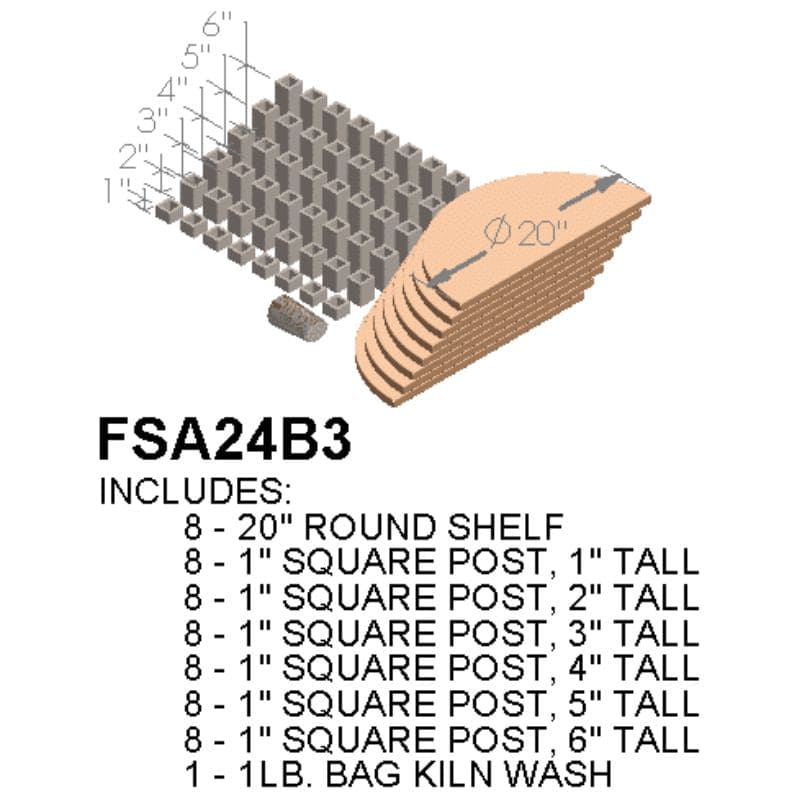

Sentinel SmartTouch controller with cone-fire and ramp-hold programs, solid-state relays (SSR), vent-ready AOP base, and Paragon's 2-year warranty. Optional furniture kit (eight 20" round shelves, assorted square posts, and kiln wash) and VentMaster kiln vent available at checkout.
Key Features
- 3" Firebrick Walls — Superior insulation for outstanding heat retention and efficiency through repeated high-fire cycles

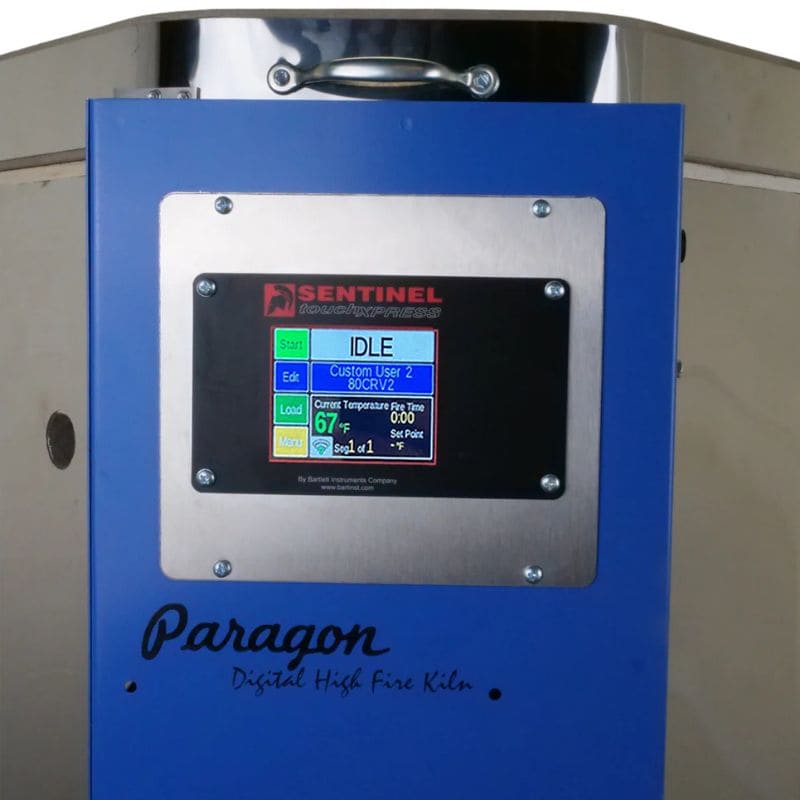

- Sentinel SmartTouch Controller — Intuitive touchscreen with cone-fire and ramp-hold modes, precise programming, firing logs, cost calculation, and advanced diagnostics
- Solid-State Relays (SSR) — Quiet, maintenance-free switching for precise, reliable temperature control
- Sectional Construction with Twist-Lock Latches — Each ring separates independently for maintenance, element changes, or moving through tight doorways
- Vent-Ready AOP Base — Pre-drilled with an Auxiliary Outlet Plug for quick VentMaster installation
- Recessed Element Grooves (No Pins) — Protected grooves reduce chipping during loading and simplify element replacement
- Two Wide-View Tapered Peepholes — Wide viewing ports for monitoring witness cones and load conditions at any point in the firing

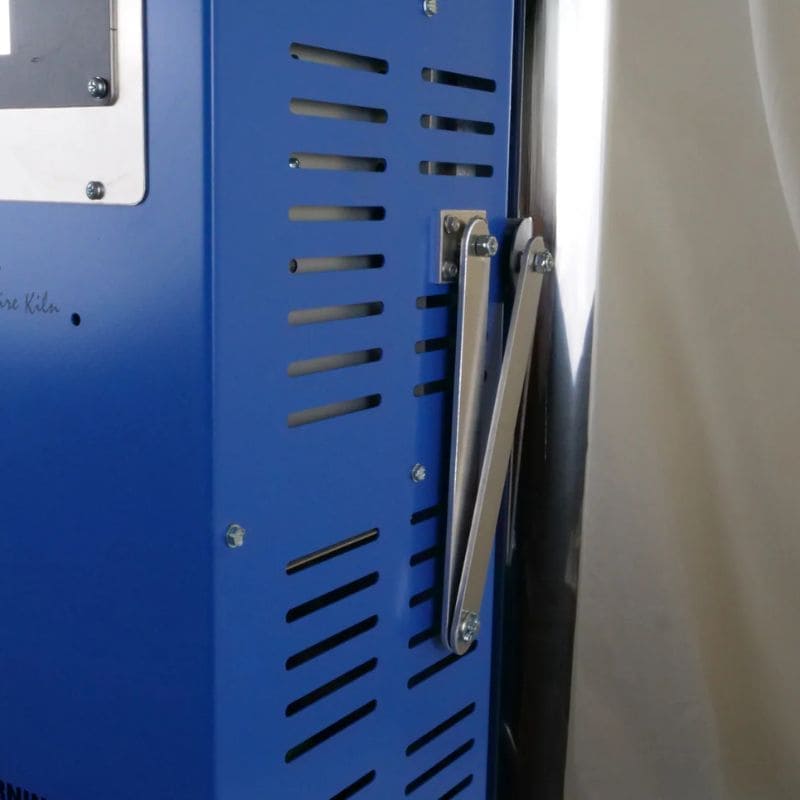

- Drop-Down Hinged Switch Box — Swings open at the front for convenient maintenance and wiring access
- Reversible Firebrick Floor — Flip the floor brick to extend its life and reduce operating costs
Specifications
| Interior Dimensions | 22.5"W × 29"H (10-sided) |
| Cubic Feet | 7.10 cu ft |
| Overall Dimensions | 30.5"W × 43.8"D × 36"H |
| Max Temperature | 2350°F / 1287°C (Cone 10) |
| Voltage | 240V single phase (3-phase/208V also available) |
| Amps | 48A |
| Watts | 11,500W |
| Plug Configuration | NEMA 6-50 |
| Breaker Size | 60A |
| Hertz | 60 |
| Approx. Ship Weight | 390 lbs |
