Replace an Obsolete Kiln Sitter with a Full Electronic Controller
The Electro Sitter bolts into the same mounting as your kiln's mechanical sitter/timer — same screws, same terminal block — and turns any kiln with a kiln sitter into a digitally controlled kiln. No rewiring the kiln, no new control cutout.
Choose your controller at checkout

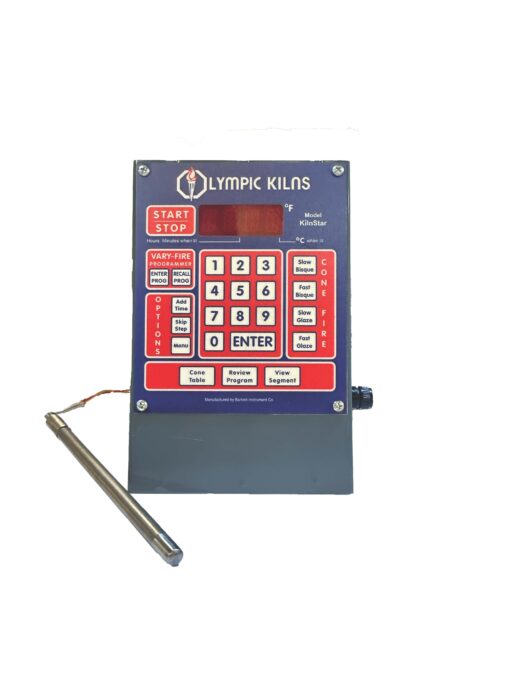

- KilnStar — $1,155: 12-key digital controller with six user programs for cone-fire and ramp-hold firing schedules.

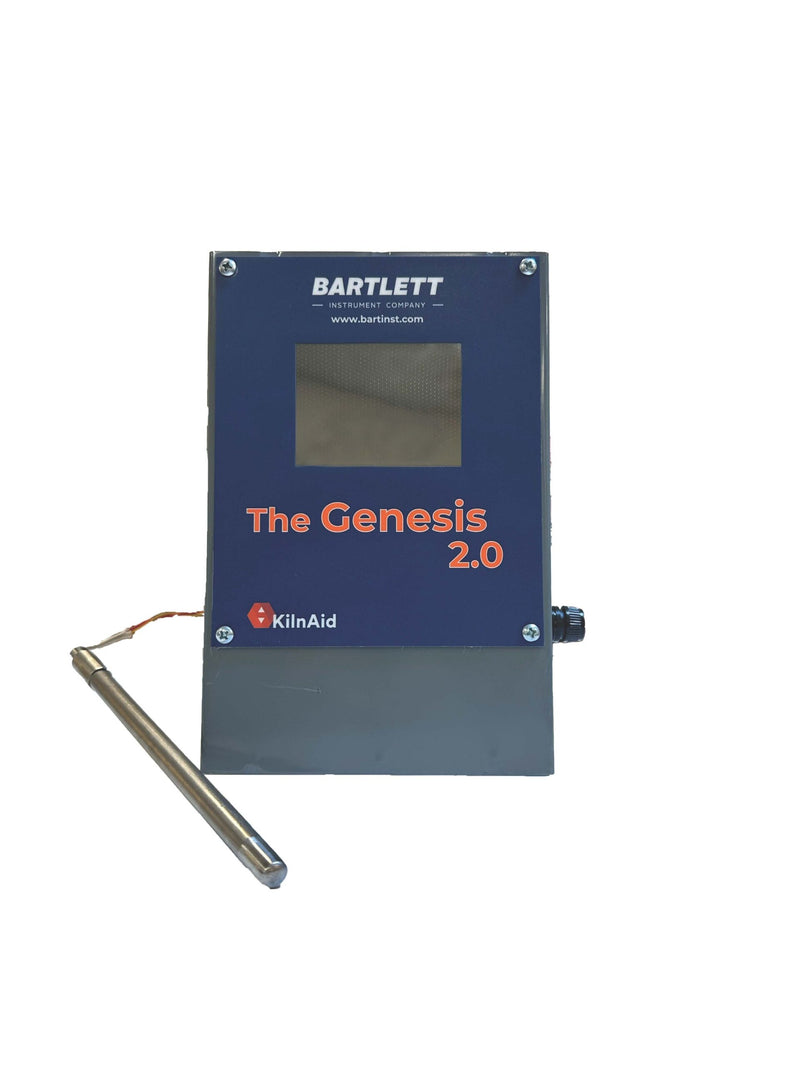

- Genesis — $1,335: touchscreen interface for the same cone-fire and ramp-hold programming.
Included with every order
Your selected controller, attached Type K thermocouple, ceramic fiber, and the controller manual.
Fit and capacity
Works in any brand kiln with a kiln sitter, rated up to 50 amps (higher amperages available — call us).
Install takes minutes
Remove the screws from the kiln sitter on the front of the kiln, detach the sitter wires, and attach them to the Electro Sitter's terminal block exactly as they were. The thermocouple goes through the sitter hole, exposed 1" inside the kiln; fill the gap with the included ceramic fiber. Set your kiln switches to high, program the controller, and you now have an electronically controlled kiln.
Not sure which controller or amperage your kiln needs? Call or text (801) 839-5882, Mon–Fri 9AM–5PM MST — expert support from a kiln-only retailer.
