Serious Glass Fusing Capacity for the Studio
The

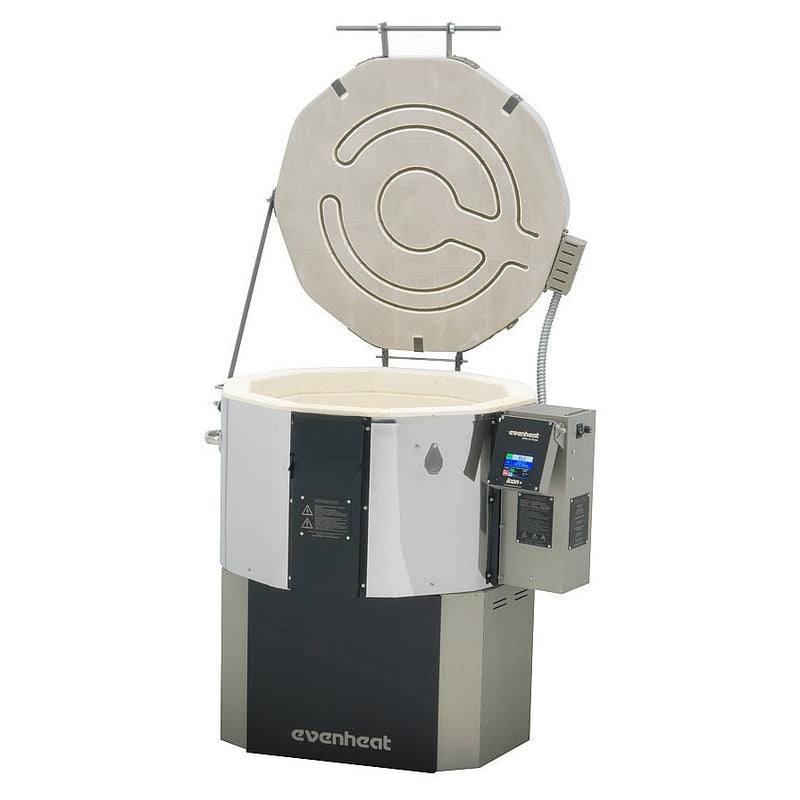

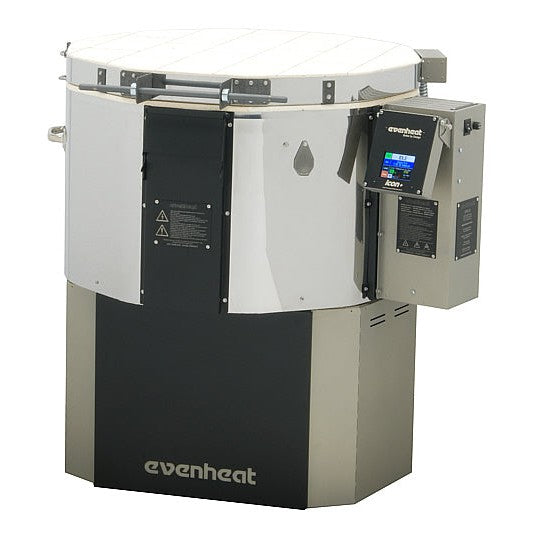

Evenheat GTS 23 is a capable glass fusing kiln built for studio work — fusing, slumping, draping, and kiln-formed jewelry.

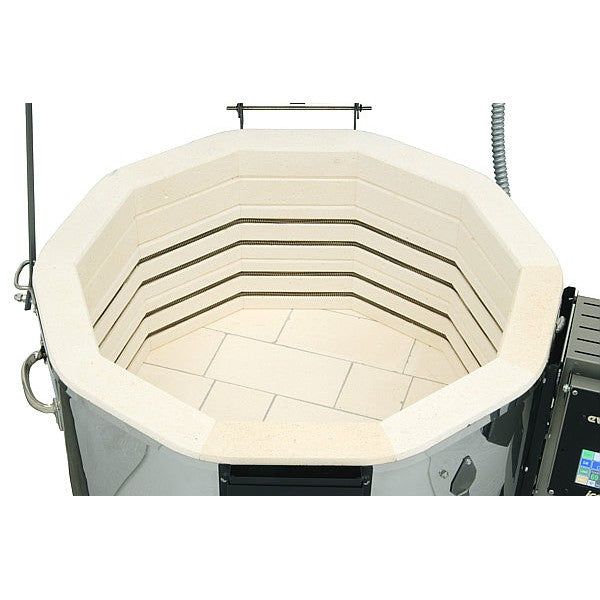

The 23.5" Dia. x 13.5" Deep chamber gives you 3.51 cubic feet of working space. Plenty of room for fusing platters, slumped pieces, and jewelry batches.
It fires up to 1800°F (Cone 7), well within the working range for glass fusing, slumping, and draping. It runs on 240V at 30 amps with a NEMA 6-50 plug.
Included with every order
Full operator manual, a 2 year limited warranty through Evenheat, free freight shipping to the US Lower 48.
You'll pick your digital controller at checkout. Your options include: TAP Smart touchscreen — virtually unlimited program storage and Wi-Fi capable with the dongle for phone/tablet monitoring; Rampmaster with a numerical keypad, up to 12 firing programs with 8 segments each; Set-Pro — economical digital control. Not sure which one fits your workflow? That's exactly the kind of thing we help with.
Key Features
-
23.5" Dia. x 13.5" Deep firing chamber for fusing, slumping, and jewelry work
-
240V / 30 amp NEMA 6-50 plug — works with most home shop electrical
- Fires up to 1800°F (Cone 7)
-
Swing View control enclosure rotates for comfortable viewing and programming
-

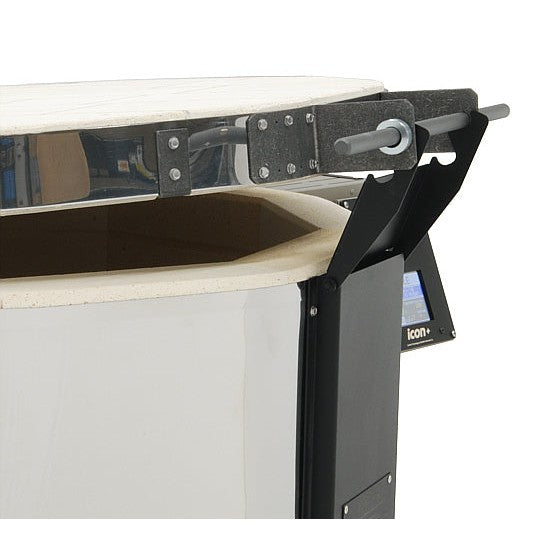

Optional Power Interrupt Switch for automatic shutoff when opening
-
Full stainless steel jacket — no leaks, no shifting, no weakness
-

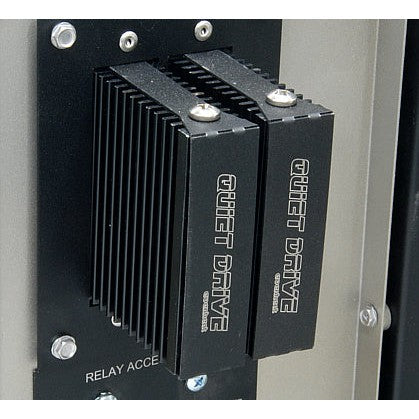

Quiet Drive Solid State Relay available — tighter temperature control, quieter operation, longer element life
-
2 year limited warranty from Evenheat plus free freight shipping to the US Lower 48
Specifications
| Model |
GTS 23 |
| Inside Dimensions |
23.5" Dia. x 13.5" Deep |
| Volume |
3.51 cu ft |
| Maximum Temperature |
1800°F (Cone 7) |
| Voltage |
240V |
| Amps |
30 |
| Watts |
7,200 |
| Plug Type |
NEMA 6-50 |
| Shipping Weight |
140 lbs |
| Warranty |
2 Year Limited (Evenheat) |
Not sure if this is the right kiln for you?
Give us a call. We'll talk through your space, your power setup, and what you're firing, and help you land on the right setup.
