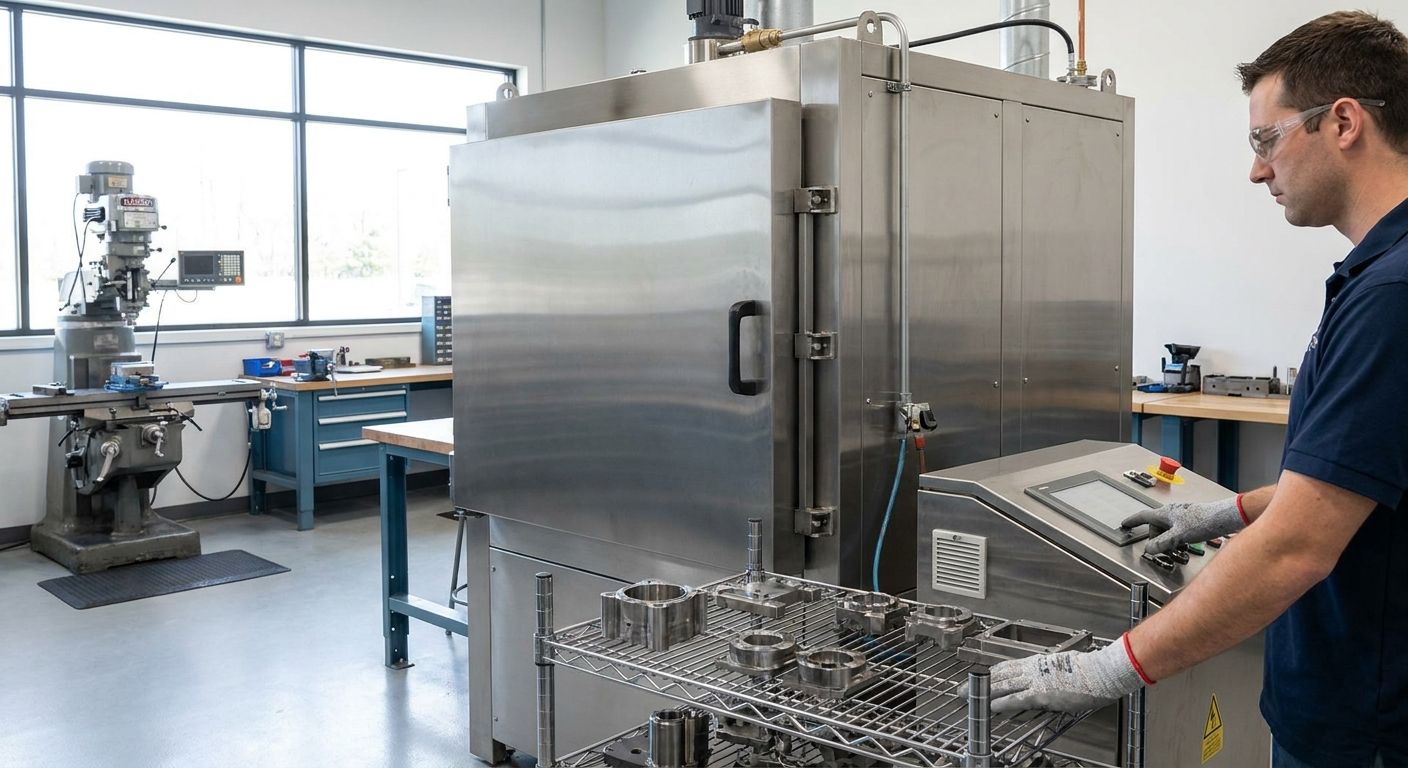

Heat Treating Ovens for Tool and Die Makers (2026)

Tool and die makers need heat treating ovens that hold tight temperature uniformity across long, flat tool steel stock, not knife-length blades. A2, D2, O1, and S7 dies and punches demand precise hardening and tempering cycles to hit dimensional tolerances after grinding, and the chamber has to be deep and wide enough to hold full-size tooling flat without warping it.

Why heat treating ovens matter for tool and die makers

A tool and die shop isn't hardening a single knife blank — it's running punches, dies, and fixtures that already got machined to tolerance before they hit the oven. Warp the part in the furnace and the grinding work is wasted. In 2026, most shops running A2, D2, O1, S7, or H13 need a chamber that heats evenly across the full length of a die, not just the middle, because uneven heat is the single biggest cause of post-hardening distortion.

The search behavior around heat treating ovens for tool and die makers skews toward long, flat, or oversized stock — broaches, progressive die sections, extrusion dies — which is a different sizing problem than a 14-inch knife blade. Chamber depth, power draw, and soak-time planning matter more here than in a hobby bladesmithing setup.

Step 1: Size the chamber to your longest die or punch

Measure before you shop. A chamber that's 2 inches short on your most common part means every job over that length gets quoted out or bent to fit.

• Measure your longest current punch, broach, or die blank end to end, then add clearance on each side
• List oversized parts fabricated for outside customers, not just in-house tooling
• Check chamber depth against growth plans for the next 2-3 years, not just this week's job
• Confirm chamber width and height too — flat dies need to lie flat, not stand on edge
• Rate the interior for full loads, not a single small part sitting alone

Step 2: Confirm the oven reaches your steel's hardening range

Tool steels don't share one hardening temperature. O1 typically hardens in the 1450°F-1500°F range, A2 and S7 run closer to 1725°F-1800°F, and D2 and H13 need up to roughly 1850°F-1875°F. An oven rated right at your ceiling temperature leaves no room for controller drift.

• Pull the manufacturer's data sheet for every alloy in your mix
• Match the oven's rated max temperature against the highest alloy you'll ever run, not today's job
• Build in margin above your target temperature for calibration drift over years of use
• Cross-check controller accuracy specs, not just the dial reading

Step 3: Build soak time into your firing schedule

A widely used shop rule of thumb is roughly one hour of soak per inch of section thickness. Skip it and the surface hardens while the core stays soft, which shows up as premature wear or cracking in service, not on the test bench.

• Start with the one-hour-per-inch rule, then adjust from your own hardness test results
• Add soak time for dense loads — multiple dies racked together heat unevenly
• Log actual soak time against finished Rockwell readings to build a shop-specific chart
• Never cut soak time to save power; a soft core costs more than a longer cycle

Step 4: Plan the temper cycle before you harden

Decide single or double temper before the part goes in, not after it comes out. Tool steels like D2 commonly need a double temper to hit stable hardness and relieve retained austenite.

• Match temper temperature to the target Rockwell hardness for that specific alloy
• Schedule the second temper cycle the same day when double tempering
• Keep tempering records tied to part numbers for QA and warranty traceability
• Confirm temper oven accuracy separately from the hardening oven if you run two units

Step 5: Wire the shop for the oven's power draw

Most full-size heat treating ovens for tool and die makers run on 240V single phase power, and getting the circuit wrong is the most common install delay. Confirm the electrical work before delivery day, following the process for wiring a kiln for 240V single phase power.

• Confirm your panel has an open 240V single phase circuit rated for the oven's draw
• Check breaker sizing against the oven's nameplate amperage, not just wire gauge
• Locate the circuit close enough to the oven to avoid long unrated extension runs
• Have an electrician sign off before delivery day, not after the oven arrives

Step 6: Set up quench and temper logistics

The oven is only half the process. Stage quench media and PPE within arm's reach of the door, and review quench tanks for knife makers for tank sizing logic that applies just as well to die blanks.

• Stage the quench tank or quenchant within arm's reach of the oven door
• Match quenchant type — oil, air, or water — to the alloy's specific requirement
• Keep tongs and PPE staged at the oven, not across the shop floor
• Time the transfer from oven to quench in seconds, not minutes

Step 7: Choose accessories that protect precision tooling

A stand rated for the oven's loaded weight and interior racking that keeps dies off the chamber floor both protect flatness on ground surfaces.

• Use a stand or cart rated for the oven's loaded weight, not the empty unit weight
• Add interior racking so dies rest flat instead of touching the chamber floor directly
• Keep a shelf brush and vacuum on hand to clear scale before the next load
• Inspect door seals every quarter — a bad seal wastes power and skews soak accuracy

Step 8: Test fire and calibrate before production runs

An empty test firing to target temperature catches controller problems before real parts are on the line.

• Run an empty test firing to the target temperature before loading real tooling
• Check controller accuracy against an independent pyrometer or thermocouple reading
• Document calibration dates and readings for your own QA file
• Re-test after any element replacement or controller service call

Heat treating ovens built for tool steel

Evenheat KF 36 Extreme Knife Oven – Deep 240V Electric Blade Heat Treat Oven 2200°F

Deep 240V chamber for batch-hardening full-size dies and long tooling.

$4,854

Evenheat LB 27 Long Blade Heat Treat Oven – Deep 240V Electric Knife Oven for Long Blades

240V deep chamber built for long punches, broaches, and extended tooling.

$2,910

Evenheat KO 27 Knife Oven – Deep 240V High-Temp Electric Heat Treat Oven 2400°F

2400°F max temp on a 240V circuit for high-alloy tool steels.

$2,922

Evenheat Cube 7 Heat Treat Oven – Compact Electric Knife Oven for Home Shop

Runs on a standard 120V household outlet for small punches and blanks.

$2,410

Comparing options for tool and die shops in 2026

Verdict: the Evenheat LB 27 is the right default for tool and die shops running mixed-length tooling in 2026 — buy the Cube 7 only if every part you harden is small enough for a household outlet.

Common mistakes tool and die makers make

• Sizing for today's job, not tomorrow's. A chamber that fits this week's punch but not next quarter's die means a second oven purchase within a year.
• Skipping alloy-specific soak calculations. Treating D2 and O1 the same way leaves one alloy under-soaked and the other over-fired.
• Overloading the chamber. Stacking dies to save cycles causes uneven heat and warps precision-ground surfaces.
• Ignoring power requirements until delivery day. A 240V single phase oven sitting in the loading dock because the panel isn't ready costs a production week.
• Skipping the empty test fire. Running real tooling in an uncalibrated oven risks scrapping expensive stock on the first load.

FAQ

One last thing

The detail that trips up more tool and die shops than any spec sheet: chamber depth gets measured in a showroom photo, not against the shop's actual longest part. Pull a tape measure on your five longest jobs from the last 12 months before you commit to a model in 2026 — the number is almost always longer than memory says.
