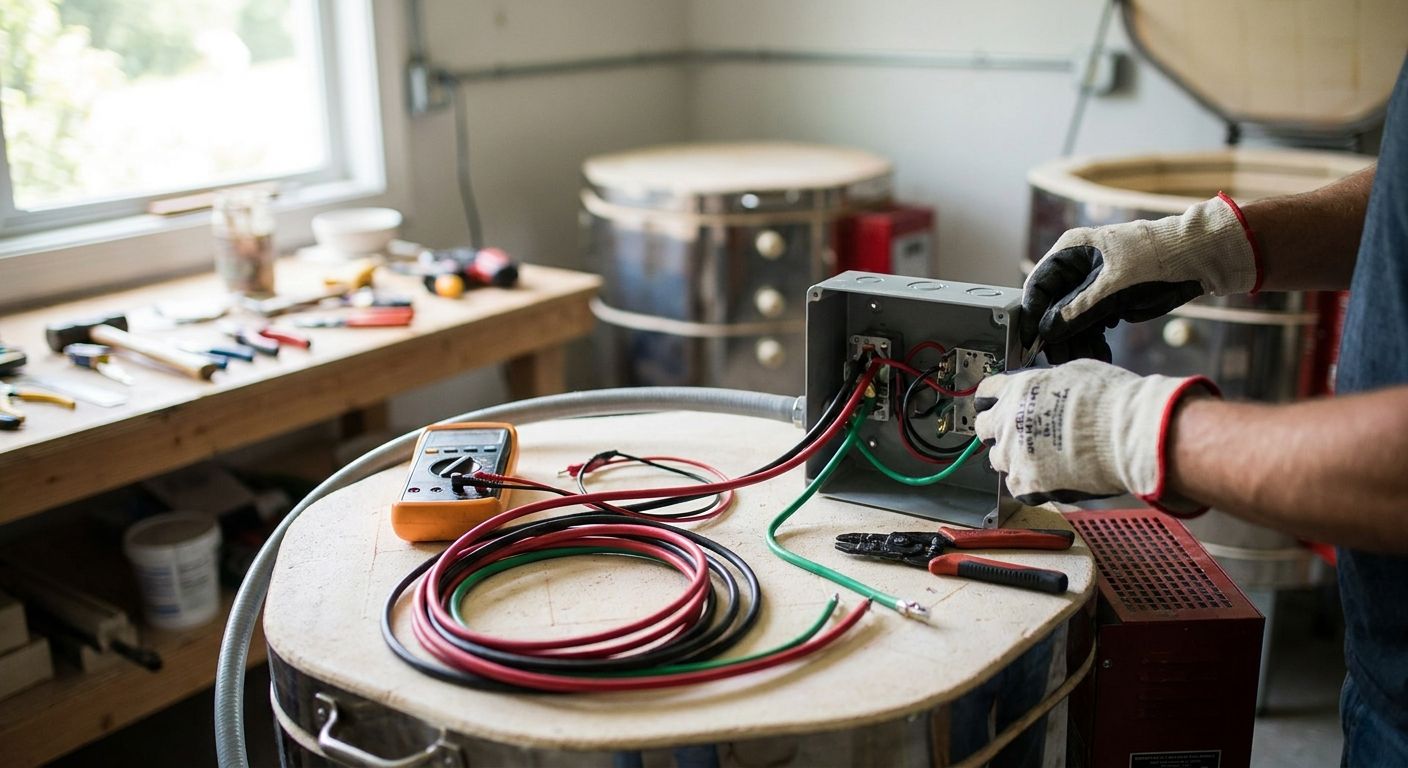

How to Wire a Kiln for 240V Single-Phase Power (2026)
Wiring a kiln for 240V single-phase power means matching breaker size, wire gauge, and receptacle type to the kiln's nameplate amp draw, then having a licensed electrician run the dedicated circuit before the kiln shows up on your dock.
TL;DR
- Wiring a kiln for 240V starts with the nameplate amp draw, not a guess, and drives breaker and wire size from there.
- Most single-phase kilns run on a dedicated 30, 40, 50, or 60 amp double-pole breaker with a matching NEMA receptacle.
- Never wire the final connection yourself: a licensed electrician pulls the circuit and, in most jurisdictions, a permit.
- The Olympic DM2818HE and similar full-size kilns need this circuit sized and installed before delivery, not after.
- Standard 120V household outlets cannot carry a 240V single-phase kiln load, so skip that shortcut entirely.
Why this matters
Undersizing a circuit is the single most common reason a new kiln trips breakers, underfires, or damages elements in its first year. A kiln pulling 48 amps on a 30 amp breaker doesn't just trip once — it stresses the panel, the wire insulation, and the kiln's relays every time it happens.
ProKilnSupply gets calls every week from buyers who ordered a kiln before checking their panel capacity. Getting the circuit right before the kiln arrives in 2026 saves a return shipment, a delayed install, and an electrician's second trip. Read the kiln element sizing guide alongside this one if you're also picking elements for a replacement or a new build.
What you'll need
- The kiln's nameplate: voltage, total amp draw, and phase (single-phase for nearly all hobbyist and studio kilns)
- A copy of your electrical panel's available capacity (ask your electrician or check the panel's main breaker rating)
- The correct NEMA receptacle for your kiln's plug configuration — commonly 6-50, 6-30, or 6-20
- Wire rated for the circuit amperage: typically 6, 8, or 10 AWG copper depending on breaker size and run length
- A licensed electrician who has wired 240V equipment before (not every residential electrician has)
- 12 inches of clearance on all sides of the kiln plus additional clearance behind the receptacle location, per your kiln's manual
If you're sizing a circuit for a larger studio kiln, the Olympic DM2818HE is a useful reference point — it's a full-size single-phase 240V kiln that draws enough current to require a 50 amp dedicated circuit in most configurations. Confirm your specific model's nameplate before ordering wire.
The steps
1. Read the nameplate, not the marketing copy
Every kiln ships with a data plate listing voltage, phase, and total amps. This is the only number that matters for circuit sizing — not the kiln's cubic footage, not its price tier. Write down the exact amp figure before calling an electrician.
Common mistake: assuming all kilns in a size class draw the same current. A 240V single-phase kiln and its bigger sibling can differ by 15-20 amps depending on element configuration.
2. Size the breaker to the load
NEC guidance for continuous loads like kiln elements typically requires the breaker to be rated at 125% of the kiln's nameplate amp draw, rounded up to the nearest standard size. A kiln pulling 40 amps generally lands on a 50 amp double-pole breaker; a kiln pulling 23 amps often lands on a 30 amp breaker. Your electrician confirms the exact figure against the current code cycle in your jurisdiction.
Expected outcome: a breaker sized correctly never trips under normal firing loads, including ramp-up on cone 6 or cone 10 programs.
3. Match the wire gauge to the breaker and the run length
Wire gauge is a function of both amperage and distance from the panel. A 50 amp circuit commonly runs on 6 AWG copper for short runs, but a run over 75-100 feet may need to step up a gauge to offset voltage drop. A 30 amp circuit typically runs on 10 AWG copper under similar conditions.
| Breaker size | Typical wire gauge (short run) | Typical NEMA receptacle |
|---|---|---|
| 30A | 10 AWG copper | 6-30R |
| 40A | 8 AWG copper | 6-50R (derated) |
| 50A | 6 AWG copper | 6-50R |
| 60A | 6 AWG copper | Hardwired disconnect |
Common mistake: reusing an existing 240V circuit sized for a dryer or range without verifying it meets the kiln's dedicated-circuit requirement. Kilns need their own circuit — shared loads cause nuisance trips during long firings.
4. Choose the receptacle or plan for a hardwired disconnect
Most single-phase kilns under 50 amps plug into a NEMA 6-50R or 6-30R receptacle mounted within reach of the kiln's cord. Kilns over 60 amps, and some 208V three-phase configurations, are more commonly hardwired through a disconnect switch instead of a plug. Confirm which your specific kiln uses before the electrician arrives — it changes the parts list.
5. Position the circuit for clearance and cord length
The receptacle or disconnect needs to sit close enough for the kiln's factory cord to reach without an extension cord — extension cords are not rated for continuous 240V kiln loads and void most manufacturer warranties. Confirm the cord length on your kiln's spec sheet before the electrician runs the wire, since moving a receptacle after installation adds a second service call.
Expected outcome: the kiln sits with full clearance on all sides per its manual, and the cord reaches the receptacle without tension or coiling.
6. Have the electrician terminate and test the circuit before the kiln arrives
A licensed electrician tests voltage at the receptacle (240V line-to-line, roughly 120V on each leg to neutral/ground) and confirms breaker function before the kiln is plugged in. This step catches wiring errors — reversed legs, loose lugs, undersized neutral — before they damage a new kiln's control board.
7. Plug in, run a low-temperature test firing, and confirm stable amp draw
Once the kiln is connected, run a short test firing to a low cone before loading real work. Watch for breaker stability and confirm the kiln reaches temperature at a normal rate for its size. If you haven't fired the kiln before, the venting setup guide is worth reviewing at the same time, since ventilation and electrical setup happen in the same install window.
Troubleshooting
- Breaker trips on startup: the breaker is undersized for the kiln's inrush current, or the circuit is shared with another load. Verify the breaker matches the nameplate amp draw at 125%.
- Kiln runs slow to reach cone temperature: voltage drop from an undersized wire gauge or a run that's longer than the gauge supports. Have the electrician measure voltage at the receptacle under load.
- Receptacle feels warm during firing: loose terminal connections or a receptacle rated below the circuit's amperage. This is a fire risk — shut the kiln down and have the connection re-terminated immediately.
- Kiln won't reach full temperature at all: check for a failed element or relay before assuming an electrical supply issue — confirm voltage first, then move to the kiln's internal components.
- Cord doesn't reach the receptacle: don't use an extension cord. Relocate the receptacle or have the electrician run a longer dedicated circuit to the correct position.
240V equipment built for a dedicated circuit
240V heat treat oven for long blades, built for makers who push their work.
$2,910
240V high-temp heat treat oven reaching 2400°F for bladesmiths.
$2,598
Commercial 240V heat treating furnace built for makers who push their work.
$3,451
Tools and resources
- Kiln nameplate data (voltage, amps, phase) — locate this before contacting an electrician
- A licensed electrician experienced with 240V single-phase equipment, not just standard branch circuits
- Local permit and inspection requirements — check with your municipal building department before work starts
- A digital multimeter for the electrician to confirm line-to-line voltage after termination
- ProKilnSupply's expert phone and text support for confirming your specific kiln's amp draw before you finalize circuit specs
What to do next
Once the circuit is live and the kiln passes a low-cone test fire, move on to seasoning the kiln properly before loading real work — new elements and refractory brick both need a controlled first firing to cure correctly. Buyers wiring a kiln for a first studio in 2026 should treat the electrical step and the seasoning step as two parts of the same install, not separate projects.
FAQ
How do you wire a kiln for 240V single-phase power?
Wiring a kiln for 240V single-phase power means sizing a dedicated breaker and wire gauge to the kiln's nameplate amp draw, then having a licensed electrician install the correct NEMA receptacle or hardwired disconnect. Never attempt the final termination without a licensed electrician, since most jurisdictions require a permit for new 240V circuits.
What size breaker does a 240V kiln need?
Breaker size depends on the kiln's nameplate amp draw, typically sized at 125% of that figure and rounded to the nearest standard breaker: 30, 40, 50, or 60 amp. A kiln pulling 40 amps commonly lands on a 50 amp double-pole breaker.
Can I plug a 240V kiln into a regular household outlet?
No, a standard 120V household outlet cannot supply the current a 240V single-phase kiln requires. Kilns need a dedicated circuit with a NEMA 6-50, 6-30, or similar 240V receptacle, or a hardwired disconnect for larger units.
What wire gauge do I need for a 50 amp kiln circuit?
A 50 amp kiln circuit typically runs on 6 AWG copper wire for short runs from the panel. Runs longer than 75-100 feet may need a heavier gauge to prevent voltage drop, which an electrician confirms based on your specific distance.
Do I need a licensed electrician to wire a kiln?
Yes, a licensed electrician should handle the final connection and, in most areas, pull a permit for a new 240V dedicated circuit. DIY wiring on a 240V kiln circuit risks fire, code violations, and voided kiln warranties.
What's the difference between a NEMA 6-50 and 6-30 plug?
A NEMA 6-50 receptacle is rated for 50 amps at 240V, while a 6-30 is rated for 30 amps at 240V; the two are not interchangeable. Your kiln's nameplate amp draw determines which receptacle and matching plug your kiln ships with.
Can a kiln run on 120V instead of 240V?
Some smaller test kilns and a limited number of studio kilns run on 120V, but most full-size pottery, glass, and heat-treating kilns require 240V single-phase power to reach working temperature efficiently. Check the specific kiln's nameplate before assuming either voltage.
Is single-phase power enough for a home or studio kiln?
Yes, single-phase 240V power is standard for the overwhelming majority of hobbyist, studio, and school kilns sold in 2026. Three-phase power is generally reserved for large commercial or industrial kiln installations.
One last thing
The wire gauge table above covers short runs — the detail buyers skip most often is the distance from panel to kiln, and a run past 75-100 feet on an undersized wire is the quiet reason a kiln underfires for months before anyone traces it back to the circuit. Measure the actual run length before your electrician orders wire, not after.
