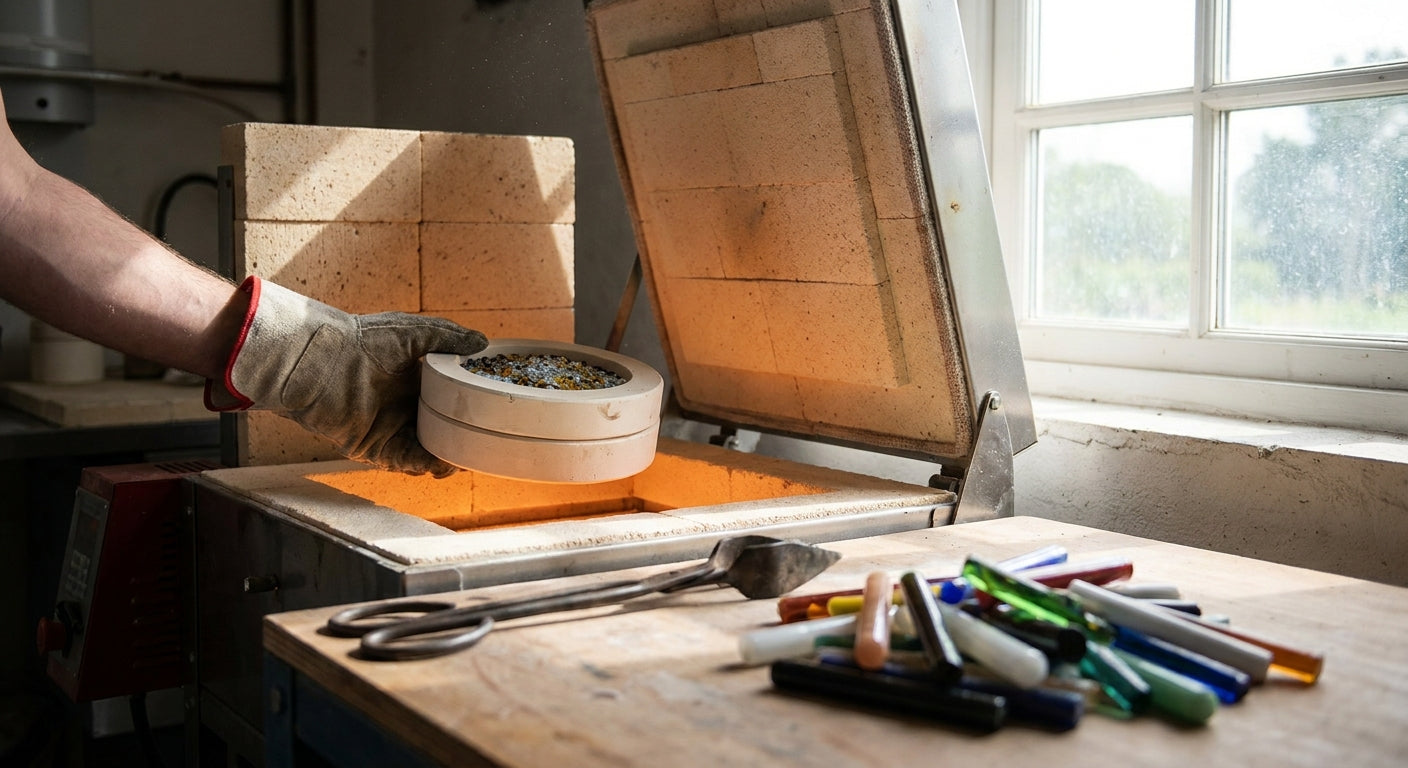

Casting Glass in a Kiln: 2026 Step-by-Step Guide
Casting glass in a kiln means melting glass into or over a mold until it takes a permanent, three-dimensional shape — different from fusing (stacking sheets flat) or slumping (draping over a form). It takes higher heat, longer holds, and a kiln built to control both the climb and the cooldown.
TL;DR
- Casting glass in a kiln requires slow ramps to 1450-1500°F and anneal soaks matched to piece thickness — rush either and the casting cracks.
- A Jen-Ken AF3C-15-13 glass kiln with a programmable digital controller handles casting cycles that a basic on/off kiln cannot.
- Kilns with lid-mounted elements outperform floor-element models for casting because heat comes from above the mold, not through it.
- Annealing is not optional: a 1-inch-thick cast piece needs hours of soak time per inch, not minutes.
- Buy verdict for 2026: a digital controller kiln is worth the premium over a manual sitter for anyone casting more than one piece a year.
Casting glass by the numbers
1450-1500°F
Typical full-fuse cast temp
Varies by glass type and mold
1 hr/inch
Minimum anneal soak per inch of thickness
25-50°F/hr
Safe post-anneal cooling rate
Why this matters
Glass that cools too fast locks in internal stress. That stress shows up days or weeks later as a crack running straight through a piece that looked perfect coming out of the kiln. Casting glass in a kiln is unforgiving of shortcuts because the mass of glass in a cast piece is far greater than a fused pendant or a slumped bowl, and more mass means more stress to release during the anneal.
A kiln built for casting needs even heat distribution, a controller that can hold a soak for hours without drifting, and enough chamber depth to fit the mold and its refractory support. The Jen-Ken AF3C-15-13 is built around exactly that brief, with a programmable digital controller that holds ramp and soak segments precisely instead of relying on a manual kiln sitter.
What You'll Need
- A glass kiln with a programmable digital controller — not a manual on/off unit. Casting cycles run 12-30+ hours and need automated ramp/soak/cool segments.
- A refractory mold — plaster/silica, ceramic shell, or a commercial casting mold rated for the glass type you're using.
- Kiln wash or shelf primer — applied to any shelf or mold surface that will touch molten glass.
- Compatible glass — cast-specific frit, billet, or cullet with a known coefficient of expansion (COE). Mixing incompatible COE glass is the single most common cause of cracked castings.
- A pyrometric cone or a kiln with a verified thermocouple — to confirm the controller's displayed temperature matches the chamber's actual temperature.
- Heat-resistant gloves and a kiln vent or fan — casting cycles run long and the studio needs airflow.
- A digital scale — for weighing frit or cullet to fill the mold cavity accurately.
The Steps
1. Confirm your mold and glass are compatible
Mismatched coefficients of expansion cause stress cracks that show up hours or days after the firing. Check the glass manufacturer's COE rating against your mold material and against any glass already cast into the piece. Skipping this step is why most first-time castings fail — not the kiln, the materials.
2. Prep the mold with kiln wash
Apply 3-4 thin coats of kiln wash to any surface the glass will touch, letting each coat dry fully. A thin, even coat prevents the glass from fusing to the mold; a thick, uneven coat flakes into the piece. Let the mold dry completely — moisture trapped in a plaster mold turns to steam and can crack the mold mid-firing.
3. Load and weigh the glass
Weigh frit, cullet, or billet against the mold's cavity volume so you're not overfilling or underfilling. Overfilling causes glass to spill over mold edges during the full-fuse segment; underfilling leaves voids in the final casting. Stack larger pieces toward the base of a deep cavity so they melt and settle first.
4. Program the ramp to full fuse
Ramp slowly — roughly 200-300°F per hour up to around 1000°F, then slower through the 1050-1300°F quartz inversion zone where glass is most prone to thermal shock. Hold the top temperature, typically 1450-1500°F depending on glass type and mold depth, for 20-60 minutes until the glass has fully flowed into the mold cavity. A kiln with lid-mounted elements, like the layout on the Jen-Ken Ceram-A-Glass 18 Ceramic Kiln, heats the mold from above evenly instead of through the shelf, which matters for thick castings.
5. Drop to anneal soak temperature
Cool the kiln down to the anneal point for your glass — typically 900-960°F for soda-lime glass — as quickly as the controller allows without shocking the piece. This is a controlled crash-cool, not a slow ramp; most programmable controllers handle this segment automatically once it's set.
6. Hold the anneal soak
Soak at the anneal point for a minimum of one hour per inch of glass thickness, longer for thick or geometrically complex castings. This step relieves internal stress built up during the full-fuse hold. Cutting the soak short is the second most common cause of delayed cracking, right behind COE mismatch.
7. Cool slowly through the strain point
Drop from the anneal soak temperature down through the strain point at a controlled rate — 25-50°F per hour is standard for cast pieces an inch or thicker. Below the strain point, the glass can cool faster since it's no longer plastic enough to build new stress.
8. Vent and unload once the kiln reads room temperature
Do not crack the lid early to "check progress." A rush of room-temperature air against a still-warm casting is a common way to crack a piece in the final hour of an otherwise perfect firing. Wait until the controller reads below 150°F before opening.
Casting accessories worth having on hand
High-accuracy sensor for confirming chamber temperature matches the controller readout.
$605
Cuts elements when the lid opens, protecting a long casting cycle from an accidental peek.
$105
Expanded vertical capacity for taller molds, built for studios running mixed glass and ceramic work.
$1,980
Troubleshooting
- Cracks appearing days after unloading: Anneal soak was too short or the cooldown through the strain point was too fast. Add 30-60 minutes to the soak and drop the cooling rate to 25°F/hour on the next firing.
- Glass didn't fill the mold cavity: Top temperature was too low or the hold was too short. Raise the full-fuse hold by 15-25°F or extend the hold time by 15 minutes.
- Bubbles trapped in the casting: Air pockets under stacked frit didn't escape during the melt. Load smaller pieces and add a brief bubble-squeeze segment around 1250-1300°F before the final climb.
- Glass stuck to the mold: Kiln wash coverage was thin or uneven. Recoat with 3-4 thin layers next time and check for bare spots before loading.
- Controller temperature doesn't match a witness cone: The thermocouple may be drifting out of calibration. A dedicated thermocouple check, like swapping in an Olympic Type S Thermocouple, rules out sensor error before you blame the schedule.
- Uneven melt across a wide mold: Heat is likely concentrated on one side. Kilns with lid-mounted elements distribute heat more evenly across a wide cavity than side-element designs.
Tools and Resources
- Jen-Ken Ceram-A-Glass 18 Ceramic Kiln — lid-element glass kiln sized for casting molds up to studio scale.
- Jen-Ken AF3C-15-13 — programmable controller kiln built for multi-day casting schedules.
- A pyrometric cone pack, kept on hand as a low-cost cross-check against controller readings.
- Manufacturer firing schedule charts for your specific glass brand — casting temps and anneal points vary by manufacturer, not just by glass type.
What to Do Next
Annealing is the step that decides whether a casting survives, and it deserves more detail than one section can hold. Read the full breakdown in how to anneal glass in a kiln before your next casting cycle, especially if you're working with pieces thicker than an inch.
ProKilnSupply sells kilns from Jen-Ken, Olympic, Evenheat, and Aim with phone and text support for schedule questions, qualifying free freight shipping, manufacturer warranty coverage, and price match on comparable models — all useful when you're deciding between a basic glass kiln and one built specifically for casting cycles.
FAQ
What temperature do you cast glass at in a kiln?
Most full-fuse casting holds land between 1450°F and 1500°F, depending on the glass type and mold depth. Deeper molds or thicker castings often need the higher end of that range and a longer hold to fully fill the cavity.
Is casting glass different from fusing or slumping?
Yes. Fusing stacks flat sheets that melt together, slumping drapes softened glass over or into a mold, and casting melts glass into a deep mold cavity to create a solid three-dimensional shape. Casting generally uses more mass, higher temperatures, and longer anneal soaks than fusing or slumping.
How long does an anneal soak need to be for cast glass?
Plan on a minimum of one hour of soak time per inch of glass thickness at the anneal point, roughly 900-960°F for soda-lime glass. Thicker or geometrically complex castings need longer, and cutting the soak short is a leading cause of delayed cracking.
Can you cast glass in a regular pottery kiln?
A basic manual kiln with only on/off firing control cannot run the multi-segment ramp/soak/cool schedule casting requires. A programmable digital controller kiln, like the Jen-Ken AF3C-15-13, is built for exactly this kind of multi-day cycle.
Why did my cast glass crack after cooling?
Cracking after cooling almost always traces back to an anneal soak that was too short or a cooldown rate through the strain point that was too fast. Mismatched coefficient of expansion between the glass and mold is the other leading cause.
How much does a kiln for casting glass cost in 2026?
Programmable glass kilns suited to casting run from roughly $1,000 for compact studio units to several thousand dollars for larger chamber sizes with advanced controllers. Pricing depends heavily on interior volume and controller sophistication.
Do I need a separate kiln for casting versus fusing?
Not necessarily — many programmable glass kilns handle fusing, slumping, and casting schedules on the same unit, since all three rely on the same ramp/soak/cool controller logic. Chamber depth matters more than a dedicated "casting-only" designation.
What causes bubbles in cast glass pieces?
Trapped air between stacked frit or cullet pieces is the usual cause. A brief bubble-squeeze hold around 1250-1300°F before the final climb to full fuse gives trapped air a chance to escape.
One Last Thing
Most casting failures blamed on "a bad kiln" are actually anneal soak failures — the kiln fired the piece correctly and the schedule cut the cooldown short. Before troubleshooting equipment, pull the actual firing log and check the soak time against the piece's thickness in inches; that single number resolves more cracked castings than any hardware change.
