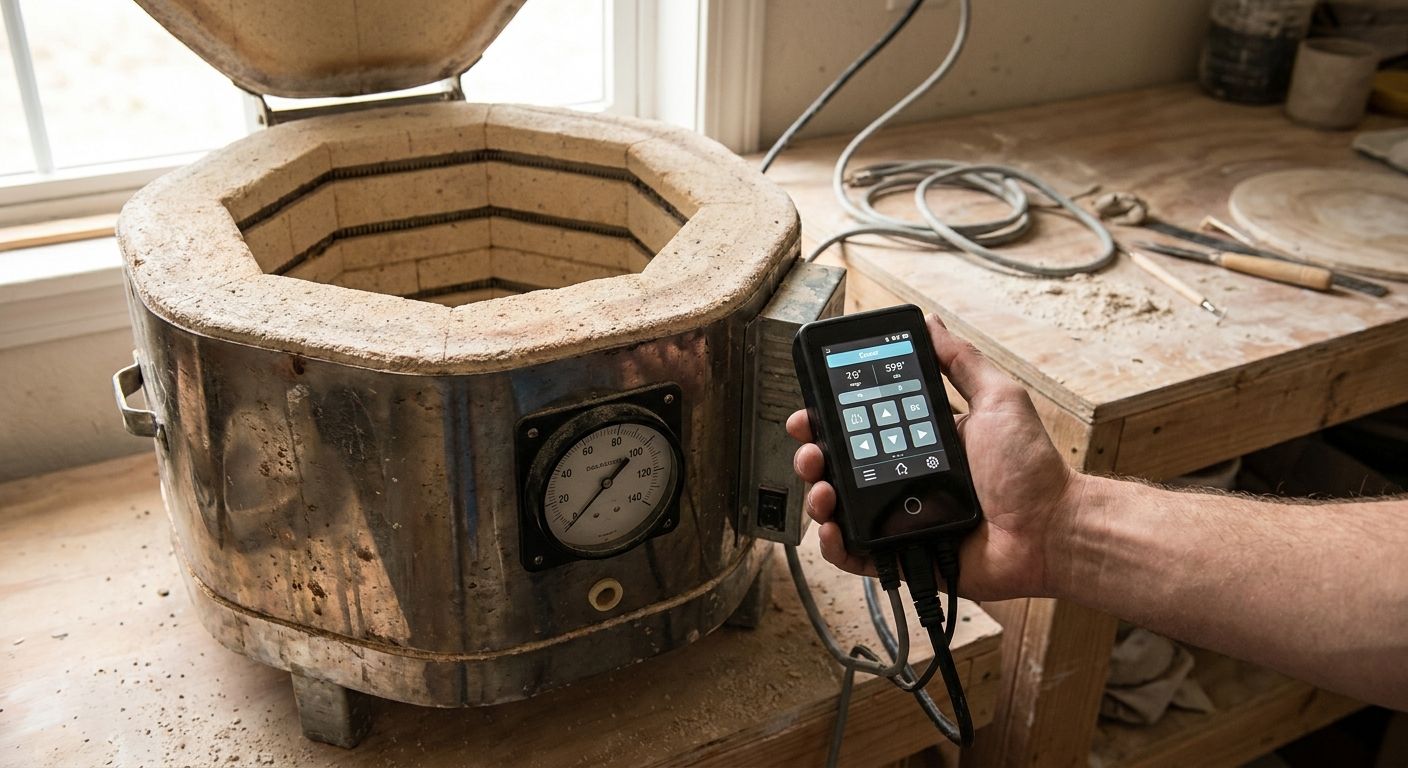

Kiln Controller Upgrade for Older Kilns: 2026 Guide
Swapping a failing kiln sitter or dead analog dial for a digital controller is often cheaper than replacing the whole kiln, but only if the elements, relays, and wiring underneath still have life left in them. A kiln controller upgrade in 2026 runs anywhere from $128 for a basic replacement assembly to $600 or more once you factor in a matching thermocouple, and getting the match wrong is what causes most post-upgrade over-firing complaints.
TL;DR
- A kiln controller upgrade costs $128 to $600+ in 2026 depending on thermocouple and relay work needed.
- Match voltage, amperage draw, and thermocouple type before ordering — mismatches cause no-heat or over-fire errors.
- Verdict: upgrade when the shell, elements, and relays are sound; replace the kiln if those are also failing.
- Type S thermocouples read to 2700°F, well past cone 10's 2350°F, so pairing matters more than controller brand.
Controller upgrade numbers
$128
Basic controller replacement assembly
$605
Type S thermocouple upgrade
2350°F
Cone 10 max firing temperature
Why This Matters
A kiln sitter that no longer trips, or a digital box throwing intermittent error codes, doesn't mean the kiln is done. Most electric kilns built in the last 20-25 years have a firing chamber, brick, and element configuration that will run another decade if the control side gets replaced correctly.
The catch: a controller is only as accurate as the thermocouple feeding it and the relays switching power to the elements. Buy a new controller and skip checking those two things, and you'll get inconsistent firings even though the display looks fine. Browse the full kiln controller and accessory catalog before ordering so you're comparing your kiln's specs against parts built for it, not a generic universal kit.
What You'll Need
- Your kiln's model number and nameplate specs (voltage, amperage, phase)
- A multimeter to check element resistance and relay continuity
- Screwdriver set (Phillips and flathead) and wire strippers
- The replacement controller kit matched to your kiln's brand and model
- A matching thermocouple, if your current one is more than 8-10 years old or reading inaccurately
- Your kiln's wiring diagram (usually on the inside of the switch box lid or in the original manual)
- 1-3 hours, depending on whether you're also replacing the thermocouple and relays
The Steps
1. Confirm voltage, amperage, and phase before you shop
This determines which controller model will even work with your kiln. A 240V single-phase kiln needs a controller rated for that circuit — a mismatch here is the single most common return reason on controller orders. Pull the nameplate data (usually inside the lid or on the switch box) and write down voltage, amperage, and phase before you look at a single product page.
Common mistake: assuming all 240V kilns are interchangeable. Amperage draw varies widely between a small test kiln and a full-size studio kiln, and the relay rating has to match.
2. Identify what type of control you currently have
A mechanical kiln sitter (with a cone-triggered shutoff bar) is a different upgrade path than an aging digital controller that's throwing error codes. Kiln sitters upgrade to a full digital controller kit that adds programmable ramp-hold-soak firing; a dying digital controller usually swaps board-for-board with a current model from the same manufacturer.
Knowing which one you have prevents ordering a kit that assumes wiring or mounting hardware you don't have.
3. Check element and relay condition before blaming the controller
A controller that reports normal temperature readings but a kiln that won't reach cone temperature usually points to worn elements or a failing relay, not the control board. Use a multimeter to check element resistance against the manufacturer's spec — a reading significantly higher than spec means the element is close to failing regardless of what controller drives it.
Replacing a controller on top of dying elements just moves the failure point, it doesn't fix it.
4. Match the thermocouple type to the new controller
Most ceramic kilns use Type K thermocouples rated to around 2300°F; high-fire and heat-treating applications often step up to Type S, rated to 2700°F. If your controller upgrade kit expects a different thermocouple type than what's currently installed, the readout will be wrong from the first firing. Review thermocouple options for electric kilns before finalizing your order so the sensor and controller are speaking the same range.
Expected outcome: correct pairing gives you a temperature readout within a few degrees of an independent pyrometric cone check on the first test firing.
5. Order the controller kit and any required relays
Once voltage, controller type, and thermocouple are confirmed, order the full kit — controller, any required relay or SSR upgrade, and the matching thermocouple if yours is aging. Ordering these together avoids a second wait for a part you needed the first time.
6. Shut off power and install per the wiring diagram
De-energize the kiln at the breaker, not just the kiln's own switch, before opening the switch box. Follow the wiring diagram exactly — controller manufacturers label terminals for element leads, thermocouple leads, and power in, and swapping element and thermocouple terminals is a common wiring mistake that either damages the new board or gives false readings.
Common mistake: reusing old wire nuts or crimped connectors that have degraded from heat cycling. Replace them while the box is open.
7. Calibrate and run a test firing before loading real work
A new controller almost never reads perfectly out of the box. Run an empty test firing to a known cone temperature (cone 06 or cone 6, depending on your typical work) with a witness cone placed where you can see it through the peep hole, then compare the cone's bend against the controller's displayed temperature. Full calibration steps are covered in the guide on how to calibrate a kiln controller — don't skip this step even on a factory-fresh controller.
Expected outcome: the witness cone should bend within the expected range for your target cone; if it's off by more than a half-cone, the controller needs offset adjustment before you fire real ware.
Controller upgrade parts
Replacement digital controller assemblies matched to your current Hot Shot setup.
$128
Platinum/rhodium Type S sensor rated 1000-2700°F for high-fire and heat-treat accuracy.
$605
Cuts elements when the lid or door opens — a common safety add during controller upgrades.
$105
Troubleshooting
- Controller shows no power at all. Check the breaker first, then the fuse inside the switch box before assuming the board is dead — a blown fuse is a far cheaper fix than a second controller.
- Temperature reading jumps or spikes erratically. Usually a loose thermocouple connection or a thermocouple nearing end of life. Reseat the connection first; replace the thermocouple if the problem persists.
- Kiln relay clicks but elements don't heat. Points to a failed relay or a burned-out element segment, not the controller. Test element resistance with a multimeter against the manufacturer spec.
- Kiln over-fires past the programmed cone. Almost always a thermocouple offset issue or a thermocouple rated for a different range than the controller expects — recheck the pairing from Step 4.
- Controller won't hold a program through a full firing cycle. Check for a loose power connection at the controller terminal block; vibration and heat cycling loosen screw terminals over years of use.
- Display shows an error code you don't recognize. Cross-reference it against your specific controller model's manual rather than guessing — error codes vary by manufacturer and firmware version.
Tools and Resources
- Multimeter rated for AC voltage and resistance testing
- Wiring diagram specific to your kiln model
- Replacement thermocouples for electric kilns for sensor pairing questions
- How to calibrate a kiln controller for post-install accuracy checks
- Phone or text support from a kiln-only retailer if you're unsure which controller kit matches your model before ordering
What to Do Next
Once the new controller is installed and calibrated, log your firing schedules going forward — ramp rates, hold times, and final cone — so you have a baseline if temperature drift shows up again in a year or two. If the elements or relays failed the resistance check in Step 3, handle those separately before you finish the controller swap; a kiln controller upgrade on top of worn elements just delays the real repair.
FAQ
What's the best kiln controller upgrade for an older kiln?
The best kiln controller upgrade in 2026 is the digital controller kit built for your specific kiln model and voltage, not a universal unit. Matching voltage, amperage, and thermocouple type matters more than brand.
Is a digital controller upgrade worth it over a kiln sitter?
Yes, if the elements and relays are still sound, because a digital controller adds programmable ramp-hold-soak firing that a mechanical kiln sitter can't do. It's not worth it if the kiln also needs new elements and relays, since that pushes the total cost close to a replacement kiln.
How much does a kiln controller upgrade cost in 2026?
A basic controller replacement assembly runs around $128, while a full upgrade with a new Type S thermocouple can run $600 or more. Relay or SSR replacement adds to that if the old relays are failing too.
Can I install a kiln controller upgrade myself?
Most home studio potters and hobbyists can install a controller upgrade themselves following the manufacturer's wiring diagram, provided the breaker is off and terminals are matched correctly. If you're not comfortable working inside a 240V switch box, use a qualified electrician for the wiring step.
Do I need a new thermocouple with a controller upgrade?
You need a new thermocouple if your current one is more than 8-10 years old, reads inaccurately, or doesn't match the temperature range the new controller expects. A Type K thermocouple maxes out lower than a Type S, which is rated to 2700°F.
How long does a kiln controller upgrade take?
A straightforward controller swap on a kiln with a known wiring diagram takes 1-3 hours. Add time if you're also replacing the thermocouple, relays, or if the wiring inside the switch box needs cleanup.
Will a controller upgrade fix a kiln that over-fires?
Only if the over-firing is caused by a failing or mismatched controller or thermocouple. If a worn relay is stuck closed or an element is shorting, a new controller won't fix the underlying electrical fault.
What voltage do I need to check before buying a controller?
Check your kiln's nameplate for voltage, amperage, and phase before buying any controller kit. A 240V single-phase kiln needs a controller and relay rated for that exact circuit, and mismatches are the most common reason for return requests.
One Last Thing
A new $128 controller doesn't fix a $30 relay that's stuck closed — check relay continuity with a multimeter before you assume the board caused an over-fire, because relays fail more often than controllers on kilns older than 15 years.
