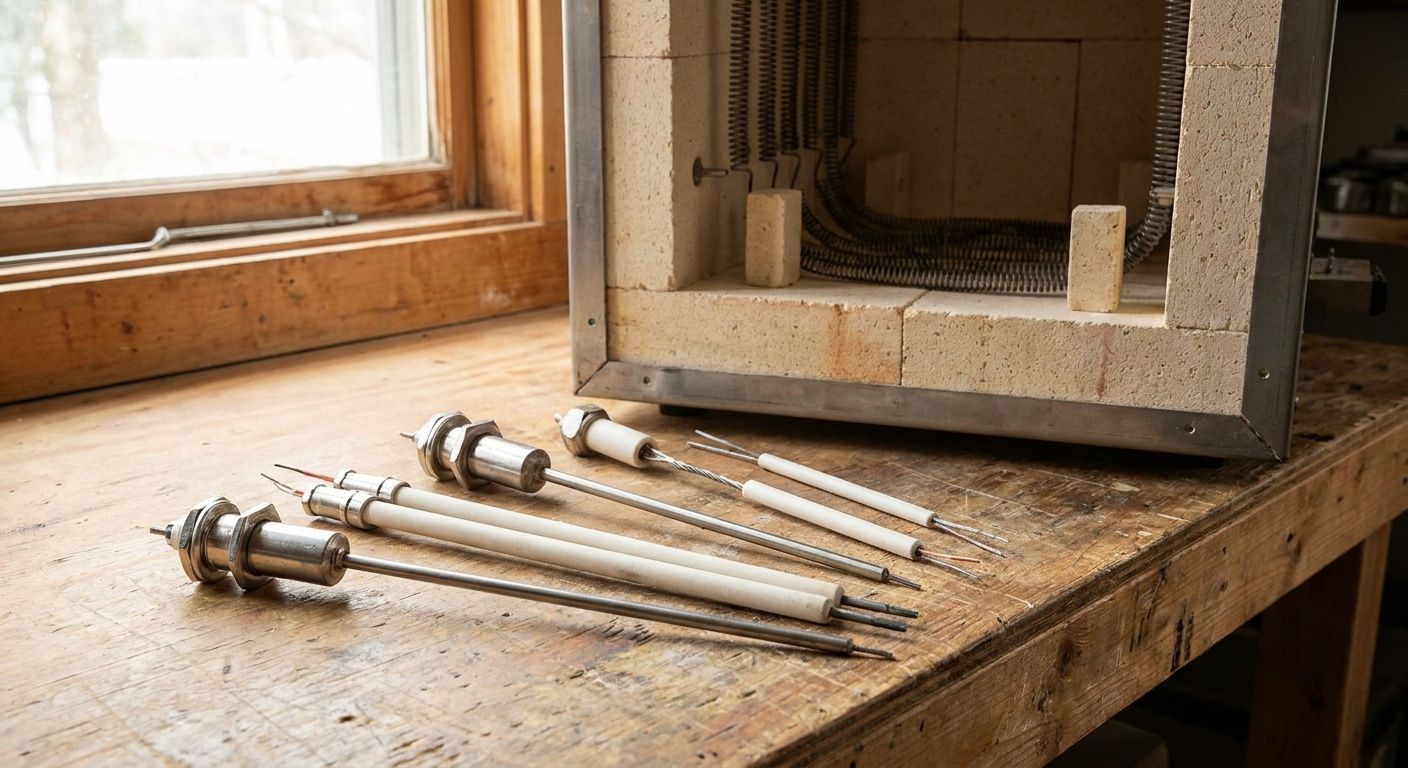

Replacement Thermocouples for Kilns: 2026 Buying Guide
A failed thermocouple is the number one reason an electric kiln reads "E-1" or "Er1" mid-firing, and swapping the wrong type wrecks your cone 6 or cone 10 schedule before you notice the drift. This guide covers how to pick a replacement thermocouple that actually matches your controller, your kiln brand, and your firing range in 2026.
TL;DR
- Type K thermocouples cover most cone 6 electric kilns up to roughly 2,200°F and are the default replacement thermocouples for kilns from Olympic and Jen-Ken.
- Type S thermocouples are required above roughly 2,300°F for cone 10 stoneware and porcelain firings — Buy only if your kiln is rated for that range.
- OEM-matched thermocouple assemblies are the safe pick; universal aftermarket probes need recalibration after install.
- Sheath length and connector style must match your controller box exactly — a 1-inch mismatch causes bad readings, not just a fit problem.
Thermocouple ranges at a glance
2,200°F
Typical Type K ceiling
Covers cone 6 stoneware
2,700°F
Type S ceiling
Needed for cone 10+
2,232°F
Cone 6 firing temp
2,381°F
Cone 10 firing temp
Why this matters
A thermocouple is the sensor your controller reads to decide when to cut power to the elements. When it drifts or fails, the controller either overfires the load or shuts down early — both cost you a kiln's worth of greenware or glass. ProKilnSupply sees this most often on kilns past year five, right when elements are also due for replacement, so the two jobs frequently happen together.
Replacement thermocouples for kilns are not one-size-fits-all parts. The wrong sheath alloy corrodes early in a high-fire atmosphere, and the wrong type reads temperature on a different curve entirely — a Type K probe wired into a Type S input will report numbers that look plausible and are still wrong by hundreds of degrees.
Who this is for
This guide is for studio owners, ceramics teachers, and home potters running an electric kiln that throws an error code, reads inconsistently against witness cones, or is due for scheduled maintenance after several hundred firings. It applies to Olympic, Jen-Ken, Evenheat, Aim, and Cress kilns alike — the physics of the sensor doesn't change by brand, only the fitting.
What to look for in replacement thermocouples for kilns
Thermocouple type (K vs. S vs. R)
Type K thermocouples handle up to roughly 2,200°F and cover the overwhelming majority of hobbyist and school kilns firing cone 6 stoneware and mid-range glass work. Type S and Type R thermocouples use platinum-rhodium wire and hold accuracy past 2,700°F, which matters if you fire cone 10 stoneware or porcelain regularly. Installing a Type K probe on a cone 10 kiln shortens its life dramatically and skews your readings near the top of the schedule.
Sheath material and atmosphere resistance
Inconel-sheathed thermocouples resist the sulfur and reduction byproducts common in raku and salt-adjacent glaze work; unprotected sheaths pit and fail early in that atmosphere. If your studio fires reduction or heavy raku loads, the sheath alloy matters more than the price tag.
Probe length and diameter
Sheath length has to match the depth of your kiln's mounting boss — most electric kilns use 6-inch to 12-inch probes. A probe that's too short reads the wall temperature instead of the chamber air, and a probe that's too long can contact ware or shelves.
Connector and wiring compatibility
Some controllers use screw-terminal compression fittings, others use quick-disconnect plugs matched to specific brands. Confirm the connector style against your existing controller box before ordering — this is the single most common return reason on replacement thermocouples.
Cone rating match to your firing schedule
Cross-check the thermocouple's rated ceiling against the cones you actually fire, not the cones the kiln was originally built for. A kiln converted from cone 6 to cone 10 service years ago often still has its original Type K sensor installed incorrectly.
OEM match vs. universal fit
OEM-matched assemblies are wired and lengthed for your exact controller model and rarely need field calibration. Universal probes cost less upfront but usually require a calibration pass against a known reference (a witness cone or a certified pyrometer) after install.
Top picks by firing range and kiln type
Type K, general-purpose — the default pick. Covers cone 04 through cone 6 up to roughly 2,200°F and fits the majority of Olympic and Jen-Ken electric kilns used for stoneware and mid-fire glass. A model like the Olympic Kiln MAS1823HE-quickship ships from the factory with this exact sensor type. Verdict: Buy for any studio firing cone 6 and below.
Type S, high-fire specialist — the cone 10 pick. Rated past 2,700°F and required for accurate readings on kilns pushed to cone 10 stoneware or porcelain. Platinum-rhodium wire costs more than base-metal Type K, but the accuracy holds through repeated high-fire cycles where a K-type would degrade within a season. Verdict: Buy if you fire cone 10 regularly, Skip if your top cone is 6 or lower.
OEM-matched assembly — the safe pick. Wired, lengthed, and connector-matched to your controller model by the manufacturer, so there's no field recalibration step. This is the right call for schools and co-ops where a miscalibrated kiln means a lost class period, not just a lost load. Verdict: Buy when uptime matters more than upfront cost.
Universal aftermarket probe — the budget wildcard. Priced lower and available faster, but requires a recalibration pass against a witness cone or reference pyrometer before you trust a full load to it. Fine for a backup kiln or a studio with in-house calibration know-how. Verdict: Consider for experienced users, Skip for a primary production kiln.
After any thermocouple swap, run the kiln controller calibration process before loading ware — a new sensor with an uncalibrated offset will overfire or underfire the first few loads even though the part itself is correct.
What to avoid
- Mismatched type substitution. A Type K probe forced into a Type S input reads a different voltage curve; the display number looks normal and is still wrong.
- Bargain probes with no sheath spec listed. If the listing doesn't state Inconel or an equivalent alloy, assume it's uncoated wire that won't survive reduction or raku atmospheres past a handful of firings.
- Reusing old compression fittings on a new probe with a different diameter. A loose fitting lets ambient air reach the tip and reads low, which pushes the controller to overfire trying to compensate.
Verdict comparison
| Type | Max temp | Best for | Verdict |
|---|---|---|---|
| Type K, general-purpose | ~2,200°F | Cone 04–6 stoneware, mid-fire glass | Buy |
| Type S, high-fire | ~2,700°F | Cone 10 stoneware, porcelain | Buy for high-fire, Skip below cone 6 |
| OEM-matched assembly | Matches kiln rating | Schools, co-ops, production studios | Buy |
| Universal aftermarket | Varies by listing | Backup kilns, experienced DIY | Consider |
FAQ
What type of thermocouple do most electric kilns use?
Most electric kilns firing cone 04 through cone 6 use a Type K thermocouple, rated to roughly 2,200°F. Kilns pushed to cone 10 or higher need a Type S or Type R probe instead.
How do I know if my kiln's thermocouple is failing?
An E-1 or Er1 error code, readings that drift from witness cone results, or a kiln that shuts off before reaching temperature all point to a failing thermocouple. Testing against a known reference cone confirms it before you order a replacement.
Can I use a universal thermocouple instead of an OEM part?
Yes, but a universal probe usually needs a calibration pass against a witness cone or reference pyrometer after installation. An OEM-matched assembly is pre-calibrated to your controller and skips that step.
Is Type S better than Type K for pottery kilns?
Type S is only necessary above roughly 2,300°F, which covers cone 10 stoneware and porcelain. For cone 6 and below, Type K is more common and less expensive with no accuracy tradeoff at that range.
How often should a kiln thermocouple be replaced?
There's no fixed interval — replacement depends on firing frequency, atmosphere, and cone rating. A kiln firing weekly at cone 6 will need a new probe long before one firing occasionally at low bisque temperatures.
Does the thermocouple length matter for kiln fit?
Yes. Most electric kilns use a probe between 6 and 12 inches, and length must match the mounting boss depth exactly. A probe that's too short reads the chamber wall instead of the air, skewing every firing.
Do I need to replace kiln elements at the same time as the thermocouple?
Not automatically, but the two parts often fail around the same kiln age. Checking elements while the thermocouple is already exposed saves a second teardown later.
Will the wrong thermocouple damage my kiln?
A mismatched type won't damage the kiln immediately, but it will report inaccurate temperatures that lead to overfiring or underfiring loads, which stresses elements and brick over repeated cycles.
One last thing
A thermocouple reading that's off by even 20°F near cone 6 changes glaze maturity noticeably — that's a smaller margin than most potters assume, and it's why witness cones stay standard practice even on a kiln with a brand-new digital controller in 2026.
