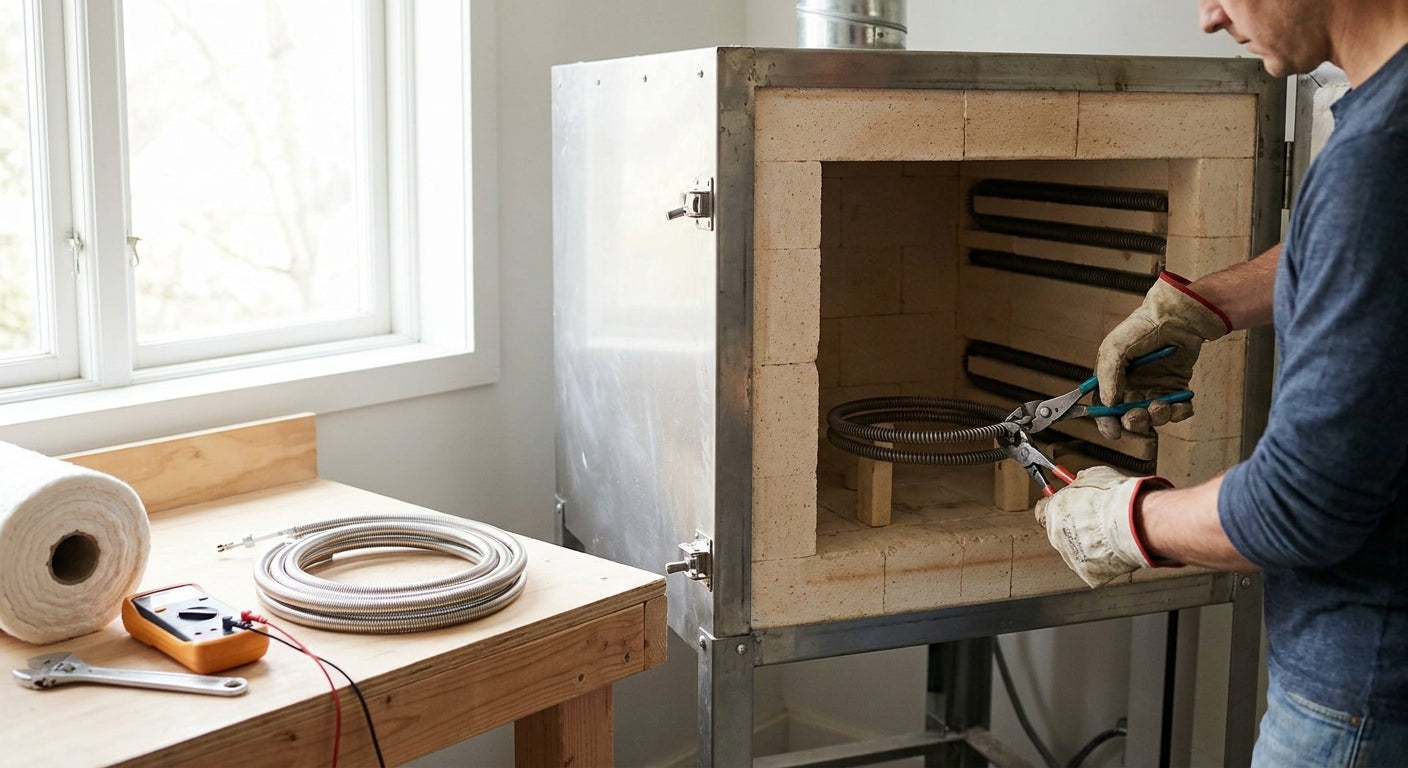

How to Replace Kiln Elements in 2026 — DIY Steps
Replacing kiln elements is a bolt-and-wire job, not a rewiring job — most potters and glass artists get it done in 60-90 minutes per section with a multimeter, a screwdriver, and the exact element kit for their kiln's model number.
TL;DR
- Kiln elements typically last 80-100 firings before resistance drifts out of spec and firing times slow down.
- Replace elements in matched sets per section, not one coil at a time, to keep amp draw even across the chamber.
- A multimeter reading more than 10% above nameplate resistance means the element is done, not just dusty.
- Order by exact model number — an Olympic MAS2327HE coil will not fit a Jen-Ken AF3C 15/13 channel.
- Budget 60-90 minutes per section and a light empty-kiln break-in firing before loading ware again.
Kiln element replacement, by the numbers
80-100 firings
Typical element lifespan
10%+
Resistance drift that signals failure
60-90 min
Typical replacement time per section
Why this matters
A kiln that fires slow, undershoots cone, or trips a breaker mid-cycle is telling you something specific about its elements, not making a vague complaint. Element resistance rises as the coil oxidizes and thins over hundreds of firings, and by the time a section reads 10-15% above its nameplate value, that ring of the kiln is contributing less heat than the others.
Most of that diagnosis and repair is doable at the switch box, without calling a technician, if you know what to test and in what order. ProKilnSupply stocks OEM-match element kits for Olympic, Jen-Ken, and Aim kilns, and phone or text support is there if a reading doesn't match what you expect mid-job.
The cost of ignoring drifting elements compounds. A glaze that used to hit cone 6 in 8 hours now takes 10, your electric bill for that firing climbs, and uneven heat between top and bottom sections shows up as underfired bottoms or overfired rims on the same shelf.
What you'll need
- Multimeter set to read ohms and AC volts
- Insulated screwdriver or nut driver matching your switch box screws
- Needle-nose pliers
- Replacement element kit matched to your exact model number
- Work gloves and safety glasses
- Shop vac for kiln wash dust and old ceramic fiber debris
- Painter's tape and a marker for labeling wire leads
- Spare terminal lugs, in case existing ones are corroded or pitted
Order by model number, not just brand. The Olympic MAS2327HE uses a different channel spacing than a smaller front-loader, and a coil that's even a few inches short won't seat without stretching — which shortens its life before it's even fired once.
The steps
1. Cut the power and lock out the breaker
Shut off the dedicated breaker feeding the kiln, tag it, and confirm zero voltage at the terminal block with a multimeter before opening anything. Large kilns run 208-240V and pull 40-50 amps, so a live element channel is a real hazard, not a formality. Set the meter to AC volts, test across each element terminal pair, and confirm 0V before touching the switch box. Common mistake: trusting the wall switch as your lockout — the breaker is the only point that guarantees the circuit is dead.
2. Pull the switch box cover and map the wiring
Remove the switch box screws and note which element leads run to which switch or relay position before disconnecting anything. Mixing up top, middle, and bottom leads on reassembly throws off the firing profile and can trip the breaker on the first fire after the repair. Photograph the box or label each lead with tape (Top, Mid, Bottom) as you work. Common mistake: forcing an element loose before freeing its ceramic terminal block — the block cracks, and now you're ordering a part you didn't plan for.
3. Test each element with a multimeter before removing anything
Set the meter to ohms and read each coil against the manufacturer's nameplate resistance for that section. A reading more than 10% above spec means the coil has stretched or partially burned through; a reading of infinity means it's fully open. Compare sections against each other too — a 15-20% spread between top and bottom readings is a common cause of a kiln that fires unevenly even though nothing has failed outright. Common mistake: replacing only the worst-reading section and leaving mismatched resistance across the chamber.
4. Disconnect and pull the old element
Free the terminal screws, release the pigtail, then work the coil out of its groove or pin channel starting from one end in 6-8 inch sections. Forcing it out from the middle stretches the remaining loops and risks cracking the brick channel. Inspect the groove once the coil is clear — a crumbling or cracked channel needs patching before a new element goes in. Common mistake: skipping the brick inspection and seating a new coil into a damaged groove, where it will sag and short against a neighboring loop within a few firings.
5. Seat the new element and dress the coil
Press the new coil into the groove or over the pins evenly, starting at the terminal end and working inward, keeping loop spacing consistent. A coil that's bunched even in one spot runs hotter locally and fails months earlier than one seated evenly. Match the kit to your exact model — element kits for the Jen-Ken AF3C 15/13 and an Aim kiln aren't interchangeable, and ordering by brand alone instead of model number is the most common reason element orders get returned. Common mistake: stretching a coil to make it reach the terminal instead of ordering the correct length.
6. Reconnect wiring and torque terminals
Reattach each pigtail to its original terminal per your Step 2 labeling, torquing screws snug plus a quarter turn. A loose terminal arcs, discolors, and eventually melts the lug — this is the single most common failure point on DIY element jobs, not the coil itself. Recheck torque once more after the kiln cools from its first post-repair firing, since thermal cycling loosens fresh connections. Common mistake: closing the switch box without a final visual check of every lead — one reversed connection sends power to the wrong section.
7. Run an empty break-in firing before loading ware
Fire the empty kiln to roughly cone 08-06, about 1700°F, before loading any glaze or bisque ware. New elements outgas manufacturing residue, and skipping this step risks tainting your next real load. Watch amp draw at the panel during this firing — it should sit within about 5% of the nameplate rating on the kiln's data plate. Common mistake: loading a full glaze kiln immediately after element replacement instead of running the empty break-in cycle first.
8. Log the resistance readings and date
Write the ohm reading per section, the date, and the element kit part number on the kiln's maintenance log or a sticker inside the switch box. When firing times start creeping up again in 2027 or 2028, you'll have a real baseline instead of a guess. This single habit turns every future diagnosis into a five-minute comparison instead of a troubleshooting session.
Parts that pair with an element job
Newest Olympic controller for all electric kilns, a common companion swap during element repairs
$399
Recommended sensor for cone 10 firing ranges, worth checking if firing lags after an element swap
$605
Cuts power to elements automatically when the lid or door opens
$105
Troubleshooting
- New element shows no heat at all. Check the terminal connection first — most dead-new-element calls trace back to a loose lug, not a bad coil.
- Breaker trips immediately after replacement. Look for a pinched lead touching the kiln shell or a reversed phase from mislabeled wiring in Step 2.
- Kiln fires unevenly after a single-section swap. Mismatched resistance between the new section and the two untouched originals — replace the remaining sections as a matched set rather than patching one at a time.
- Coil pops out of its groove within a few firings. The brick channel is worn or cracked; patch or replace the brick section instead of reseating the same coil.
- Terminal glows or discolors after firing. Loose or corroded lug — clean the contact points, re-torque, and replace the lug if it's pitted.
- Kiln still runs behind schedule despite new elements. Check thermocouple placement and controller calibration; a controller or sensor problem won't be fixed by an element swap.
Tools and resources
- Multimeter (ohms and AC volts) — the single non-negotiable tool for this job
- OEM-match element kits by model number, not brand alone
- Jen-Ken Ceram-A-Glass 18 and similarly-sized kilns share element access patterns worth reviewing before your first swap
- A dated maintenance log — paper, spreadsheet, or a sticker taped inside the switch box
- Phone or text support from a kiln-only specialist when a reading doesn't match expectations mid-repair
What to do next
If you're replacing the same section for the third time in two years, or the shell, brick, and controller are all aging out alongside the elements, run the math on a new kiln instead of another repair. A studio that's cycling through element kits annually on a kiln from the early 2010s is often better served by a current model with updated brick and a Genesis-generation controller. Start with best small kilns for home pottery studios if that comparison is on the table for 2026.
FAQ
How much does it cost to replace kiln elements?
Cost depends on your kiln's model number, section count, and element gauge, so check current pricing for your specific model rather than assuming a flat rate. A full-section kit is typically less expensive than a service call.
How often do kiln elements need to be replaced?
Most elements last 80-100 firings before resistance drifts more than 10% out of spec. Heavy studio use or frequent high-cone firing shortens that range.
Can I replace just one kiln element instead of the whole set?
You can, but mismatched resistance between a new section and older sections is a common cause of uneven firing. Replacing all sections together keeps amp draw and heat distribution consistent.
What tools do I need to replace kiln elements?
A multimeter, an insulated screwdriver or nut driver, needle-nose pliers, and the correct element kit for your model number cover most jobs. Gloves and safety glasses are standard for any switch box work.
How do I know if my kiln element is bad?
A multimeter reading more than 10% above the nameplate resistance, or an infinite reading, means the element is failing or dead. Slow firing times and uneven cone results across shelves are the visible symptoms.
Is it safe to replace kiln elements myself?
Yes, if the breaker is locked out and voltage is confirmed at zero before you open the switch box. Kiln circuits run 208-240V, so skipping the lockout step is where DIY element jobs go wrong.
Do Olympic and Jen-Ken kilns use the same elements?
No. Element channel spacing and coil length are specific to each model number, even within the same brand, so order by model, not brand alone.
How long does it take to replace kiln elements?
Budget 60-90 minutes per section, plus time for an empty break-in firing before loading ware again. A full multi-section kiln can take half a day including the break-in cycle.
One last thing
Most element failures traced back far enough start at installation, not age — a coil dressed unevenly in its first 10-15 firings runs hot at the bunched spots and burns through months before a properly seated one would. Check spacing again after your first two firings on any new element, not just at the six-month maintenance mark; catching a bunched loop early is a five-minute fix, and catching it late is a repeat of this entire guide.
