A failed relay or contactor is the most common reason a kiln won't heat evenly or won't heat at all, even though the elements test fine. Replacing one takes about 1-2 hours if you've already confirmed the diagnosis, and the part itself is a fraction of what a new element set costs — the real cost is downtime if you guess wrong and reorder twice.
TL;DR
- Kiln relay replacement takes 1-2 hours once a multimeter confirms the relay or contactor — not the elements — has failed.
- Mechanical contactors switch full amperage with physical contacts; solid-state relays (SSRs) switch silently but fail without warning.
- Kiln circuits carry 208-240V at 20-50A — lock out the breaker before you touch anything inside the panel.
- Match the replacement's voltage and amp rating to your kiln's element load, never just the physical mounting hole.
- A relay that clicks but shows no continuity on the load side is the part to replace, not the elements or thermocouple.
Kiln electrical basics
208-240V
Typical studio kiln circuit voltage
20-50A
Typical breaker size for a single kiln
1-2 hours
Typical relay or contactor swap time
Why this matters
A kiln relay or contactor is the switch between your controller and your elements. Every kiln cycles power to the elements dozens or hundreds of times per firing, and that switch takes the abuse so your low-voltage controller board doesn't have to. When it fails, symptoms mimic a bad element, a bad thermocouple, or a miscalibrated controller — which is why so many kilns get an unnecessary element replacement before anyone checks the actual failure point.
Getting this wrong on a 240V single-phase kiln circuit means opening a panel carrying 20-50 amps for nothing. Confirm the diagnosis first, then replace the part — not the other way around.

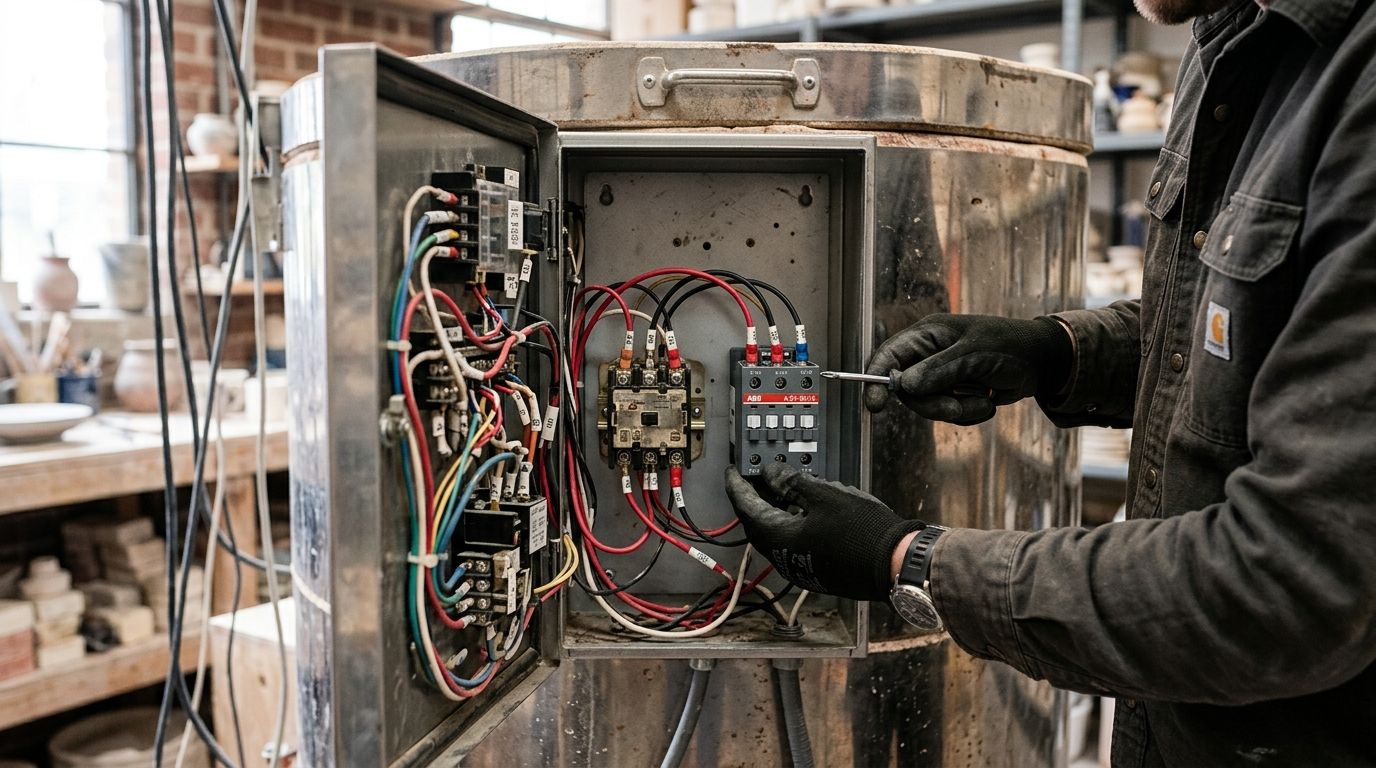

How to replace a kiln relay or contactor
- Kill the breaker feeding the kiln and confirm zero voltage at the panel with a non-contact tester before you touch anything.
- Remove the control panel or junction box cover to expose the relay or contactor bank — most Olympic, Evenheat, and Jen-Ken kilns mount these behind the digital controller.
- Locate the wiring diagram, usually taped inside the panel or printed in the kiln's manual, and identify which relay feeds which element zone.
- Test the suspect component with a multimeter set to continuity or resistance. A mechanical contactor should show continuity across its contacts when engaged and an open circuit when not — pitted, welded-shut, or permanently open contacts confirm failure.
- Photograph the wiring before disconnecting anything. Kilns with multiple zones have leads that look identical but aren't interchangeable.
- Disconnect and remove the failed relay or contactor, noting terminal positions and gauge of each wire.
- Install the replacement, matched exactly on voltage and amperage rating, and torque terminals to the manufacturer's spec — a loose lug is the number-one cause of repeat failures.
- Restore power and run a low-temperature test firing, listening for the relay or contactor cycling and watching the controller's element indicator to confirm each zone is switching correctly.
If you're not confident reading a wiring diagram or working inside a live 240V panel, this is the point to bring in a licensed electrician — the part costs little; a mistake inside the panel doesn't.
Mechanical contactor vs. solid-state relay: which one is in your kiln
Older kiln sitters and basic digital controllers typically use mechanical contactors. Newer programmable controllers running fast PID cycling increasingly use solid-state relays (SSRs) because they have no moving parts to wear out from rapid switching.
| Feature | Mechanical contactor | Solid-state relay (SSR) |
|---|---|---|
| Switching method | Physical contacts open/close | No moving parts, uses a triac |
| Audible cycling | Yes — you hear it click | Silent |
| Common failure mode | Pitted or welded-shut contacts | Failed triac, stuck on or off |
| Best for | Single-zone kilns with basic kiln sitters | Multi-zone kilns cycling constantly under digital control |
| Verdict | Buy for simple sitter-based retrofits | Buy for programmable multi-zone kilns |
A welded mechanical contactor is the scarier failure of the two — it can leave elements powered even after the controller calls for shutoff, which is a real overfiring and fire risk. A stuck-open SSR just leaves you with a cold kiln, which is annoying but safe.
Why kiln relays and contactors fail
- High cycling frequency — programmable controllers running fast PID ramps switch relays far more often per firing than a basic kiln sitter.
- Undersized rating for the element load — a relay rated below the amp draw of its element zone pits and welds faster.
- Age and total duty cycle — a kiln fired several times a week for years puts far more cycles on a contactor than an occasional hobbyist unit.
- Clay dust and debris — fine particulate inside the control panel contaminates mechanical contacts over time.
- Loose or corroded terminal connections — resistance at a loose lug generates heat that accelerates relay failure.
- Voltage inconsistency from the building's electrical system — dips and spikes stress relay coils and SSR triacs alike.
How do I know if it's the relay or the elements?
A failed relay shows no continuity on its load side even when the controller signals it to close, while the elements themselves still test fine at their rated resistance. If a kiln won't reach temperature but every element measures correctly with a multimeter, the relay or contactor feeding that zone is the more likely culprit.
Can I replace a kiln contactor myself?
Yes, if you're comfortable working inside a de-energized 240V panel with a multimeter and a wiring diagram — the swap itself takes 1-2 hours for most studio kilns. If you're not confident locking out the breaker or reading terminal labels, hire a licensed electrician instead of guessing inside a live panel.
How often do kiln relays fail?
There's no fixed replacement interval — kilns fired multiple times a week under fast programmable cycles wear relays and contactors faster than kilns fired occasionally. Watch for uneven firing results, one zone lagging behind others, or an audible click with no corresponding heat as early warning signs rather than firing on a calendar schedule.
ProKilnSupply's kiln specialists can help confirm which relay or contactor matches a specific Olympic, Evenheat, Jen-Ken, or Aim model before you order — reach the team through the site for fit guidance, since a mismatched amp rating is the most common reason a replacement fails again within months.
FAQ
What's the difference between a kiln relay and a kiln contactor?
A contactor is a mechanical switch with physical contacts; a solid-state relay (SSR) switches electronically with no moving parts. Both do the same job — switching power to the elements — but wear out differently.
Is it safe to fire a kiln with a failing relay?
No — a relay stuck closed can leave elements powered past the controller's shutoff command, creating an overfiring and fire risk. Shut the kiln down and diagnose the relay before firing again.
How much does a kiln relay replacement cost?
Cost varies by kiln brand and whether it uses a mechanical contactor or a solid-state relay; check current part pricing for your specific model rather than assuming a flat rate.
Can a bad relay damage my kiln elements?
A relay stuck in the closed position can overpower elements beyond their rated cycle, shortening element life or causing premature burnout. A relay stuck open simply starves that zone of power.
Do all kiln brands use the same relay or contactor?
No — Olympic, Evenheat, Jen-Ken, and Aim kilns each spec components rated to their own element loads and controller design, so parts aren't universally interchangeable across brands.
What tools do I need to replace a kiln relay?
A multimeter, a non-contact voltage tester, basic hand tools, and your kiln's wiring diagram cover most relay and contactor swaps. A camera or phone to photograph wiring before disconnecting saves reassembly headaches.
Should I replace all relays at once if one fails?
Not automatically — test each zone's relay individually with a multimeter, since replacing a working relay wastes money. Replace only the zone that fails continuity or shows visible contact damage.
